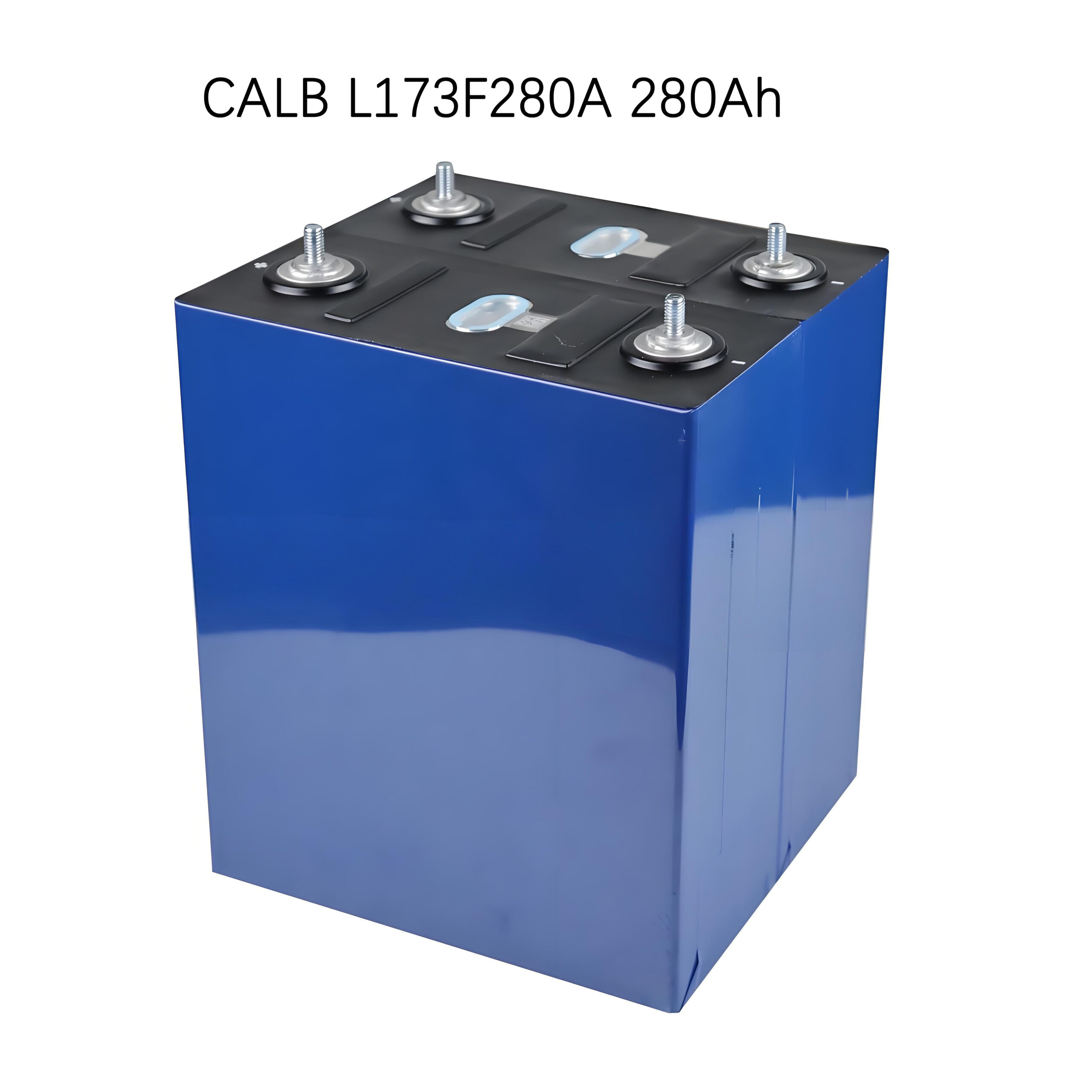

CALB L173F280A 280Ah prismatic LiFePO4 cell delivers industry-leading performance:
⚡ 2150W Peak Discharge (1.2P for 30s) – Powers heavy-load equipment startups
❄️ -30℃ Arctic Operation – Maintains full functionality at -20°C
♻️ 9,000 Deep Cycles @25°C – 3× industry standard lifespan
Certified Specifications (Per CALB Spec A2)
| Parameter | Value | Competitive Edge |
|---|---|---|
| Nominal Capacity | 280Ah ±1% | 896Wh energy density |
| Continuous Power | 1.0P (896W) | 24/7 industrial operation |
| Cycle Life | ≥9,000 cycles | ≤$0.005/cycle cost |
| DC Internal Resistance | ≤0.5mΩ @50%SOC | 98.7% energy efficiency |

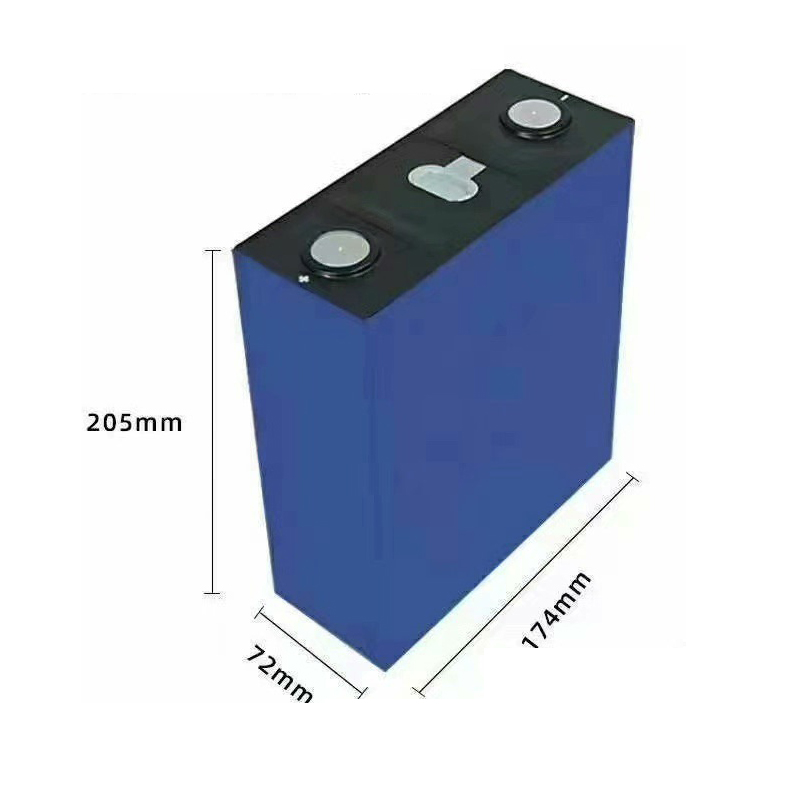

| Dimensions (W×H×T) | 174.4×204.5×71.4mm | Compact stacking design |
| Safety Certification | EUCAR Level 2-4 | Passes nail/crush/130°C tests |
Extreme Environment Performance
✅ Sub-zero Charging – 0.8P charging at -10°C (per section 3.2.2)
✅ Seawater Immersion – 2h in 3.5% NaCl solution (EUCAR Level 2)
✅ Vibration Resistant – 8h XYZ-axis vibration (per GB/T 31485)
Industrial Applications
• Utility-Scale ESS: 1MW+ containerized systems
• Arctic Mining EVs: -30°C operation in mining trucks
• Marine Power: Saltwater-resistant battery banks
