Ultra-High Power EVE INR21700 50PL Battery Packs for Industrial & Military Drones
Unlock unmatched performance with EVE INR21700 50PL Battery Packs – engineered for heavy-duty drones and military operations.
Core Specifications & Flexibility
- Configurations: Customizable from 6S to 24S and 2P to 7P, delivering capacities from 10,000mAh (2P) to 35,000mAh (7P).

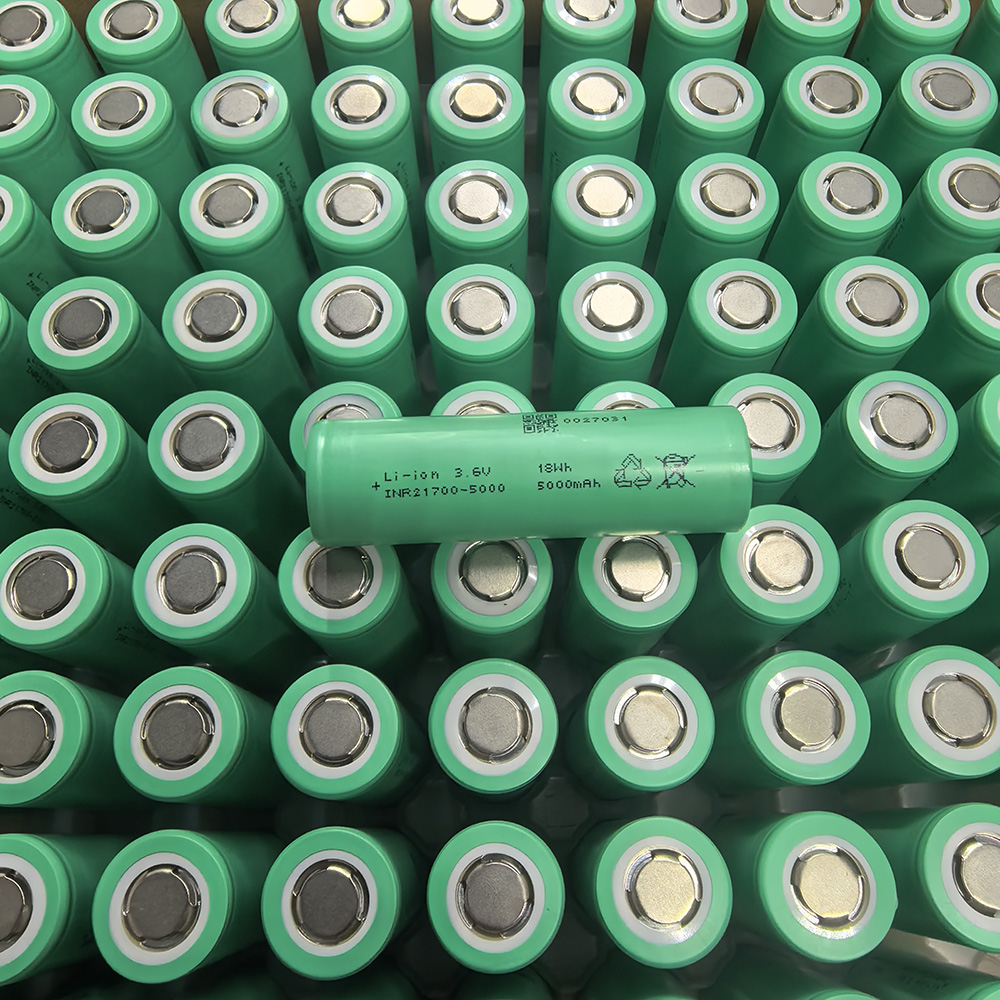

- Cell-Level Excellence (Model: INR21700/50PL):
- Nominal Voltage: 3.6V per cell (22.2V for 6S packs).
- Capacity: 5,000mAh (min. 4,800mAh), achieving 333Wh energy in 6S3P configurations.
- Discharge Performance:
- Continuous: 125A (25C) with 75°C cutoff.
- Pulse (2s): 180A (36C) for instant power bursts.
- Durability:
- Operating Temperature: -20°C to 60°C.
- Cycle Life: 300 cycles @80% capacity retention.
- Energy Density: 250 Wh/kg (industry-leading).
Real-World Applications of EVE 50PL Battery Packs

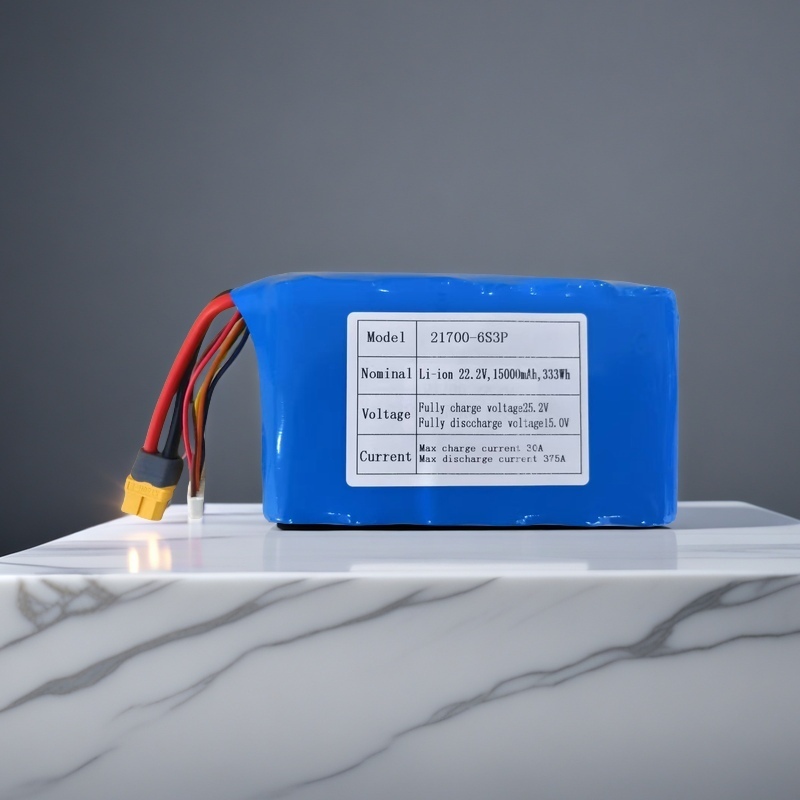

- 21700-6S3P Battery Pack:
- 22.2V, 15,000mAh, 333Wh energy, 375A max discharge.
- Ideal for long-endurance industrial drones requiring 30%+ flight time extension.

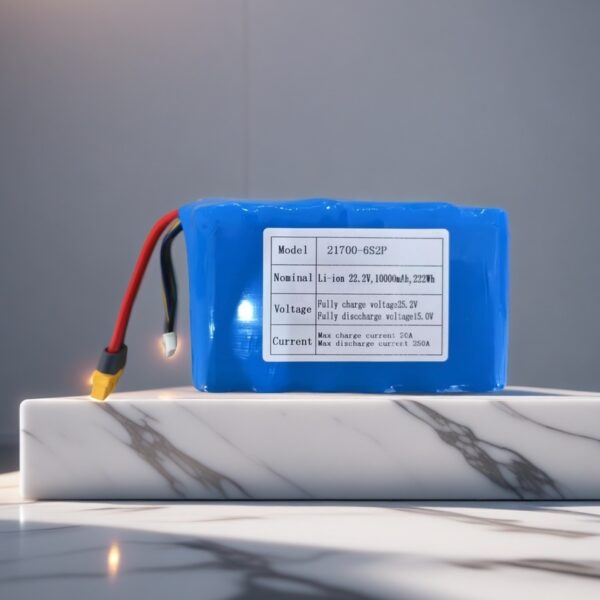

- 21700-6S2P Battery Pack:
- 22.2V, 10,000mAh, 222Wh energy, 250A max discharge.
- Perfect for military UAVs demanding rapid deployment and extreme reliability.
Technical Superiority
- Smart Charging: Supports fast charging up to 10A (2C) with precision voltage control (4.20±0.05V).
- Safety Compliance: Meets strict cutoff temperatures (Tmax: 80°C) during high-current operations.
- Compact Design: Cell dimensions 70.15mm (H) × 21.15mm (D) – optimized for space-constrained setups.
