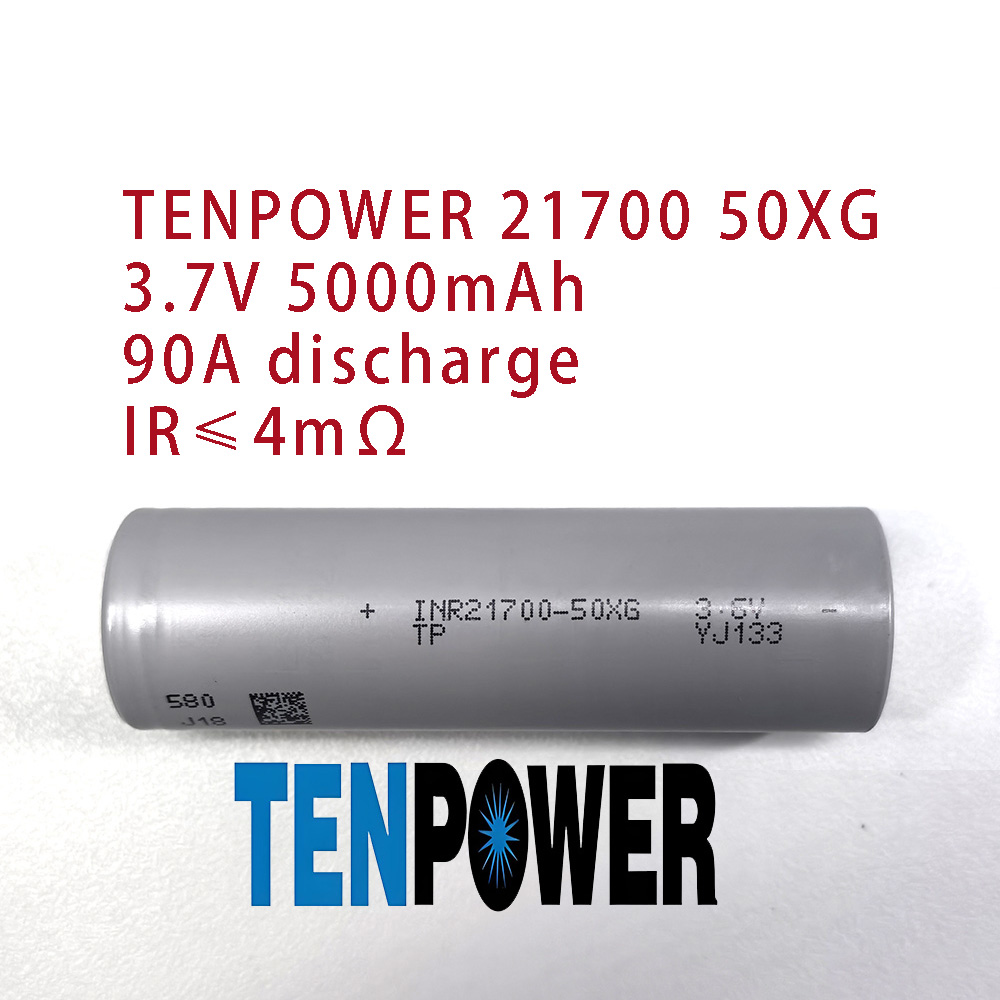

TENPOWER is proud to introduce the INR21700-50XG, a next-generation lithium-ion cell engineered to deliver uncompromising power and endurance for the most demanding applications. By integrating advanced Full-Pole Tab (All-Pole Tab) technology, this 21700 format cell sets a new industry benchmark, seamlessly combining a high 5000mAh capacity with an extreme continuous discharge rate of 90A.
Unmatched Performance Specifications
The INR21700-50XG is designed where both runtime and peak power are critical. It provides the energy to last and the punch to perform.
-
High Energy Density: 5000mAh nominal capacity for extended operational time.
-
Extreme Discharge Capability:
-
Continuous Discharge: 90A (with 75°C temperature cut-off)
-
Pulse Discharge: 140A for 3 seconds
-
-
Maximum Efficiency: Ultra-low internal impedance (≤4mΩ) minimizes energy loss as heat, ensuring stable voltage and superior performance under heavy loads.
-
Rapid Charging: Supports maximum charging currents of up to 15A.
Engineered for Reliability and Longevity
Performance is nothing without consistency. The INR21700-50XG is built to withstand rigorous use, ensuring long-term value and reliability.
-
Robust Cycle Life: Retains ≥60% of its initial capacity after 500 deep-discharge cycles at 40A.
-
Proven Safety: Compliant with stringent international safety standards, successfully passing tests including Overcharge, Short-Circuit, Crush, Thermal Shock, and Impact.
-
Wide Operating Range: Optimized for discharge in environments from -20°C to 60°C.
Verified Quality: Performance You Can Trust
Our commitment to quality ensures that every cell not only meets but often exceeds its published specifications. Real-world production data consistently shows:
-

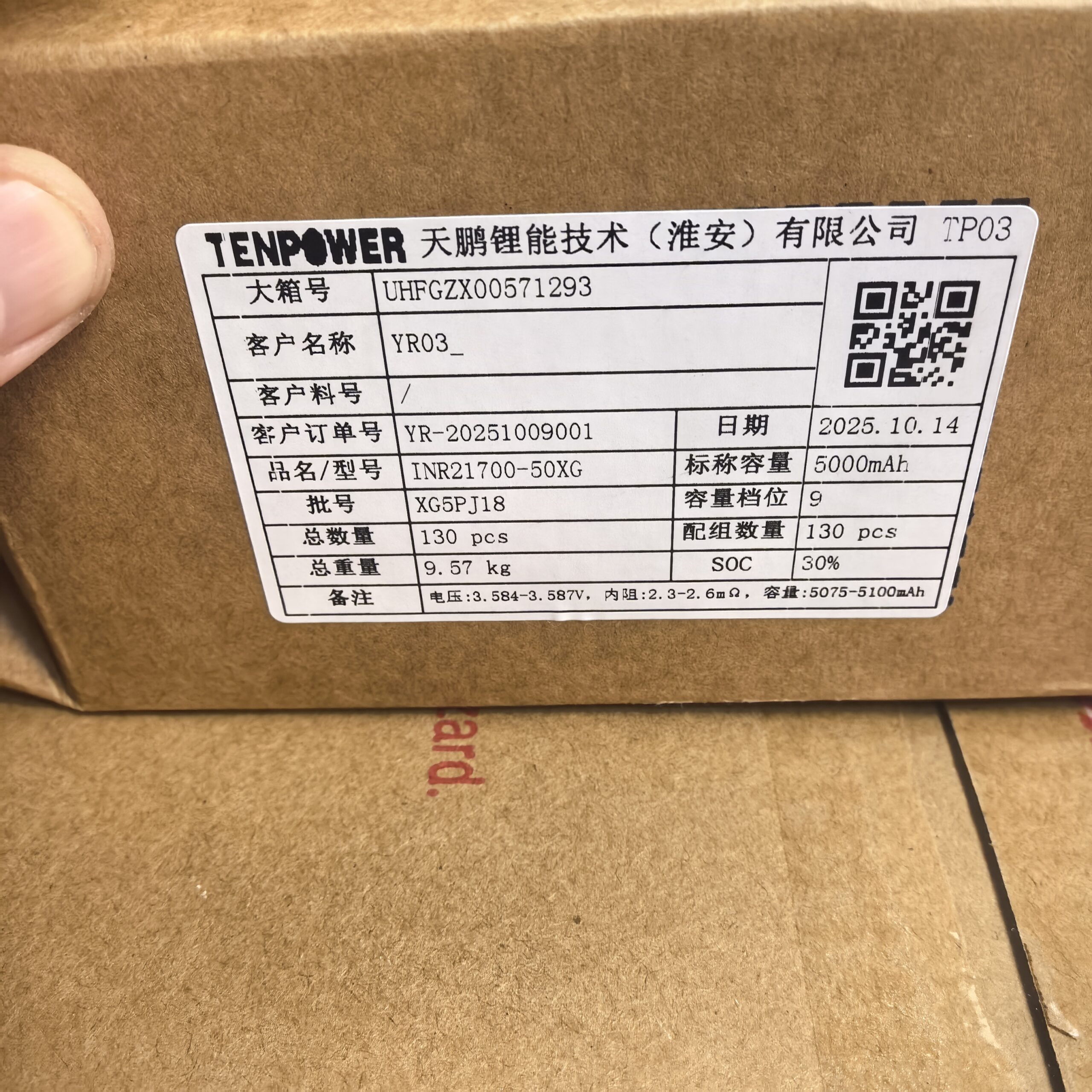

Actual Delivered Capacity: 5075 – 5100mAh
-
Actual Measured Impedance: 2.3 – 2.6mΩ
This consistent over-performance provides a critical safety margin for your designs, guaranteeing that your end product will deliver on its promises.
Ideal Applications
The INR21700-50XG is the optimal power source for a wide range of high-drain devices, including:
-
Professional Power Tools: (e.g., High-torque drills, circular saws, angle grinders)
-
Electric Mobility: (e.g., Performance e-Bikes, e-Scooters, Drones)
-
High-Performance Hobbyist RC Vehicles: (e.g., Race-grade drones, RC cars, and boats)
-
Critical Backup Systems: (e.g., UPS, Portable Power Stations)
The Technology Advantage: Full-Pole Tab Design
The cornerstone of the INR21700-50XG’s superior performance is its innovative Full-Pole Tab design. This technology dramatically reduces the path of internal current flow, resulting in significantly lower resistance, better heat dissipation, higher discharge capability, and enhanced cycle life compared to conventional cells.
About TENPOWER:
TENPOWER is a leading manufacturer dedicated to the research, development, and production of high-performance lithium-ion battery cells. Our focus on technological innovation and stringent quality control ensures we provide cutting-edge power solutions for a global market.
For more information, datasheets, or to inquire about samples, please contact TENPOWER or visit our website.
