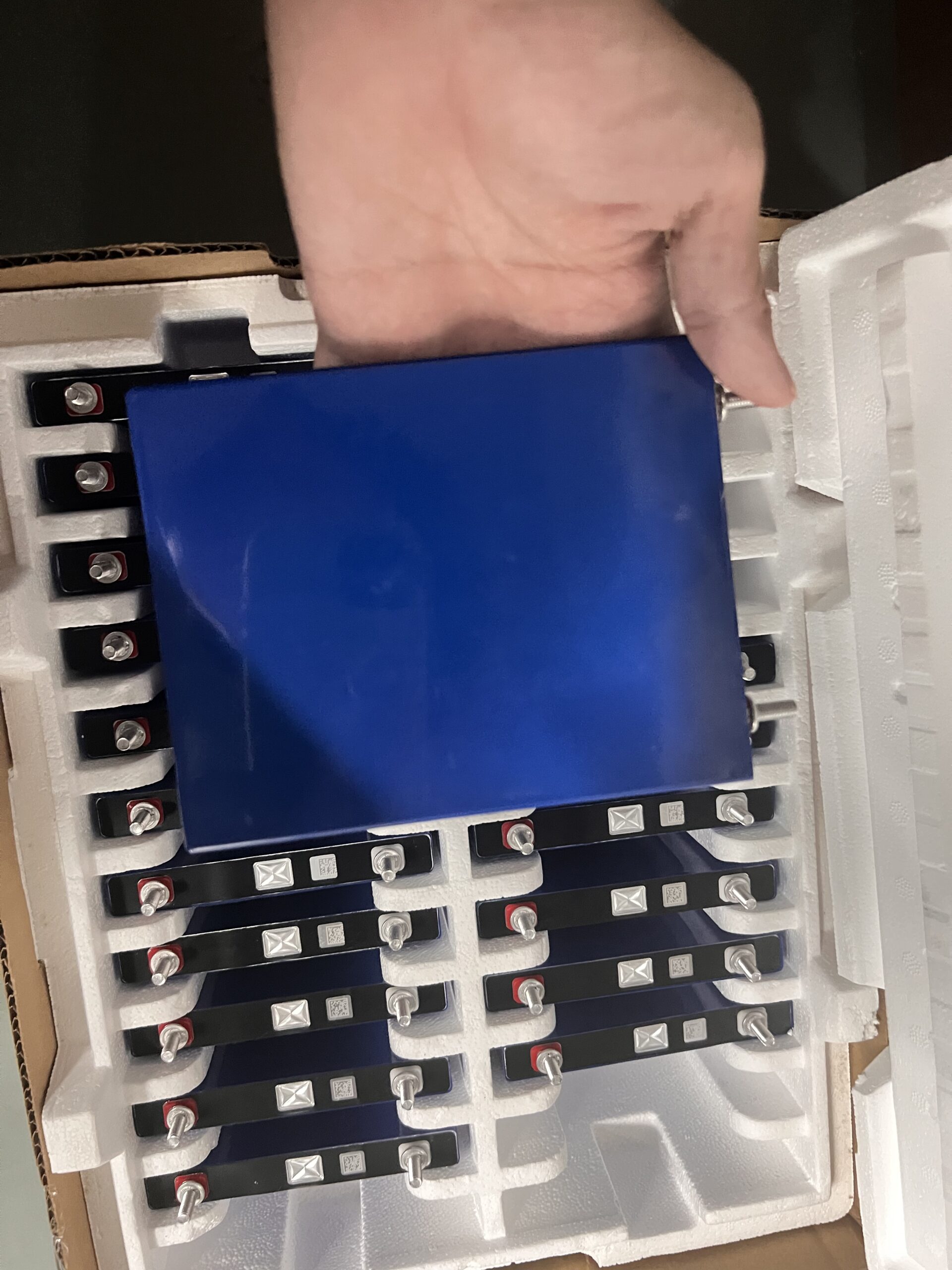

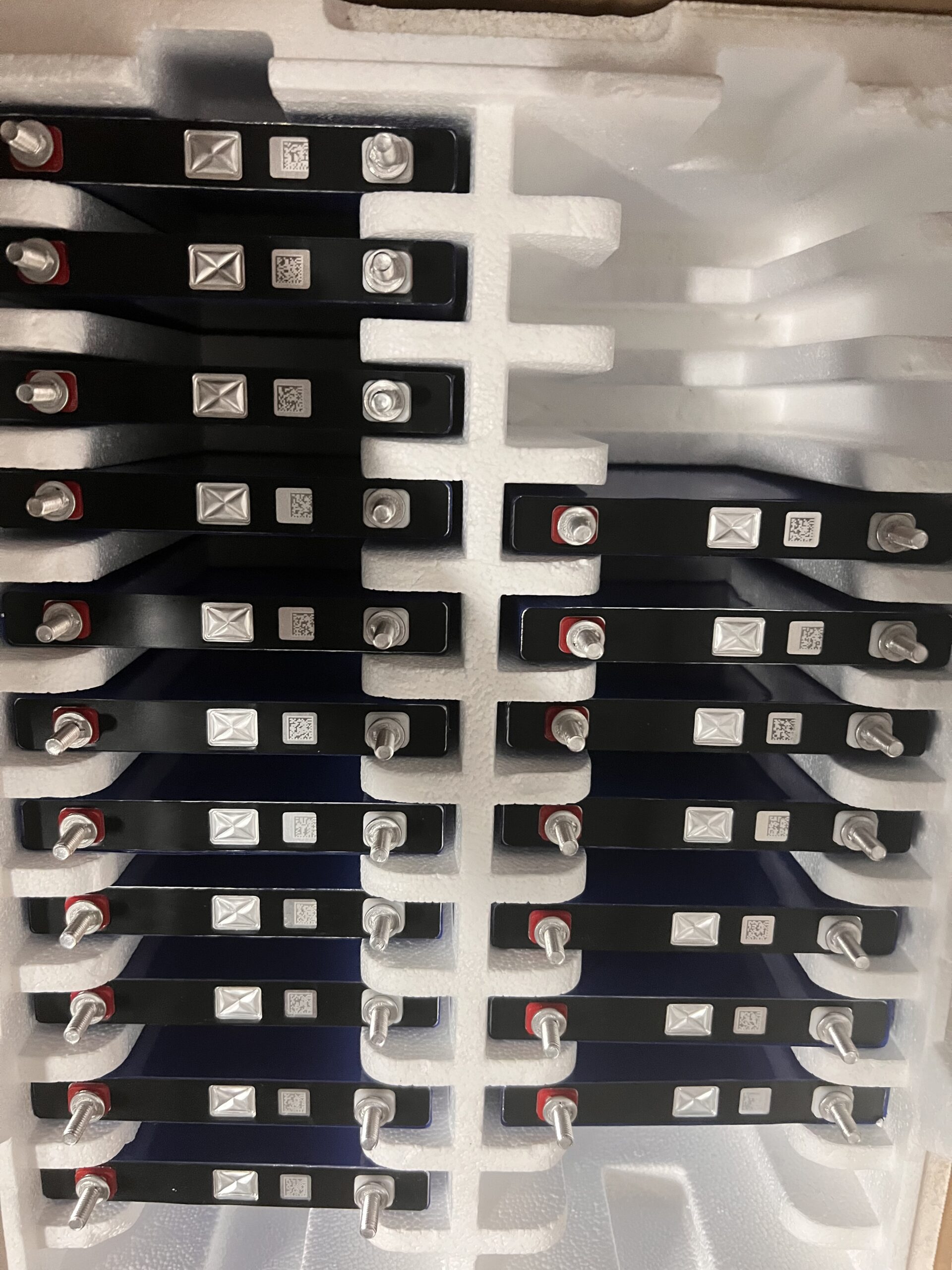

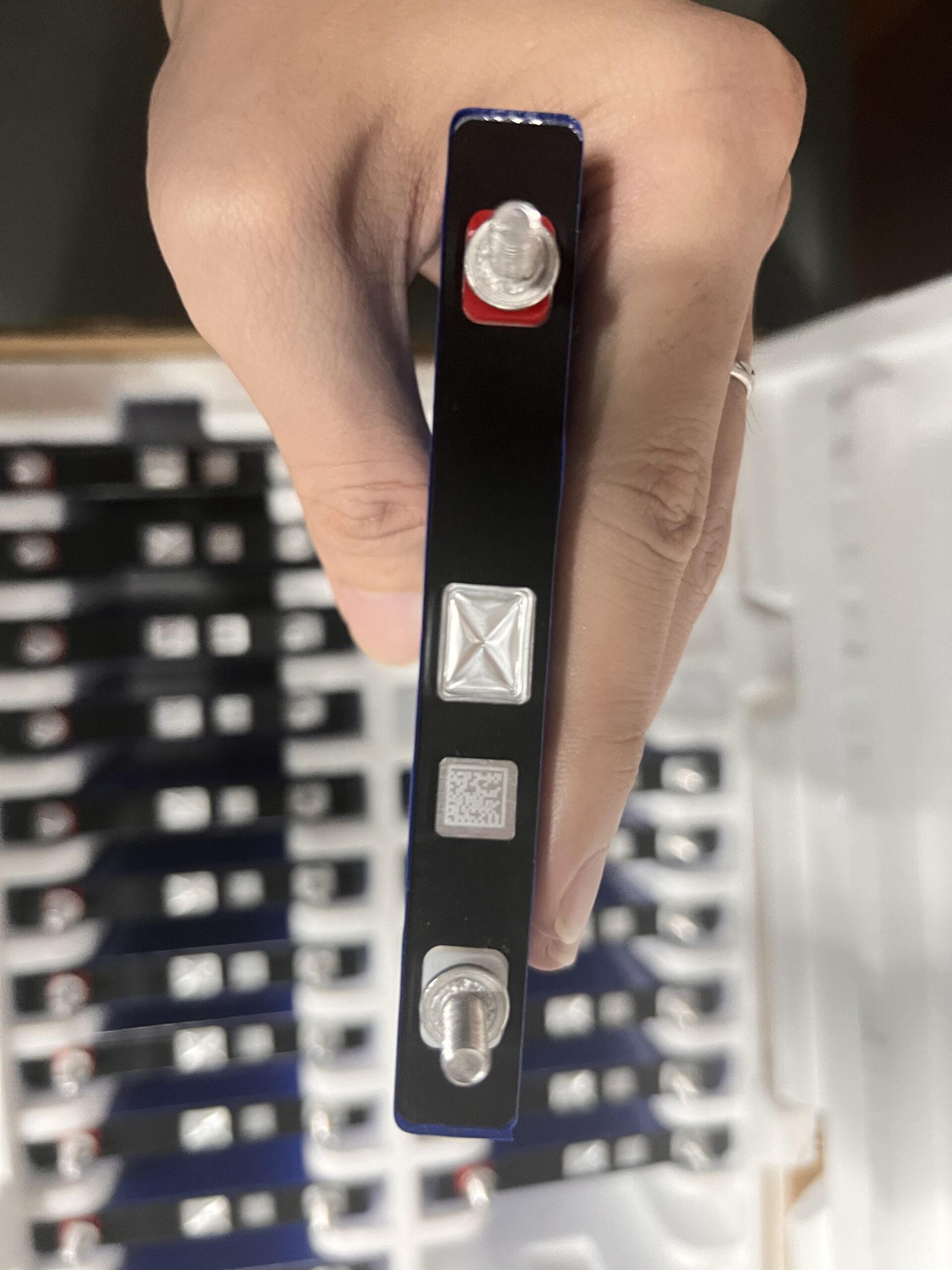

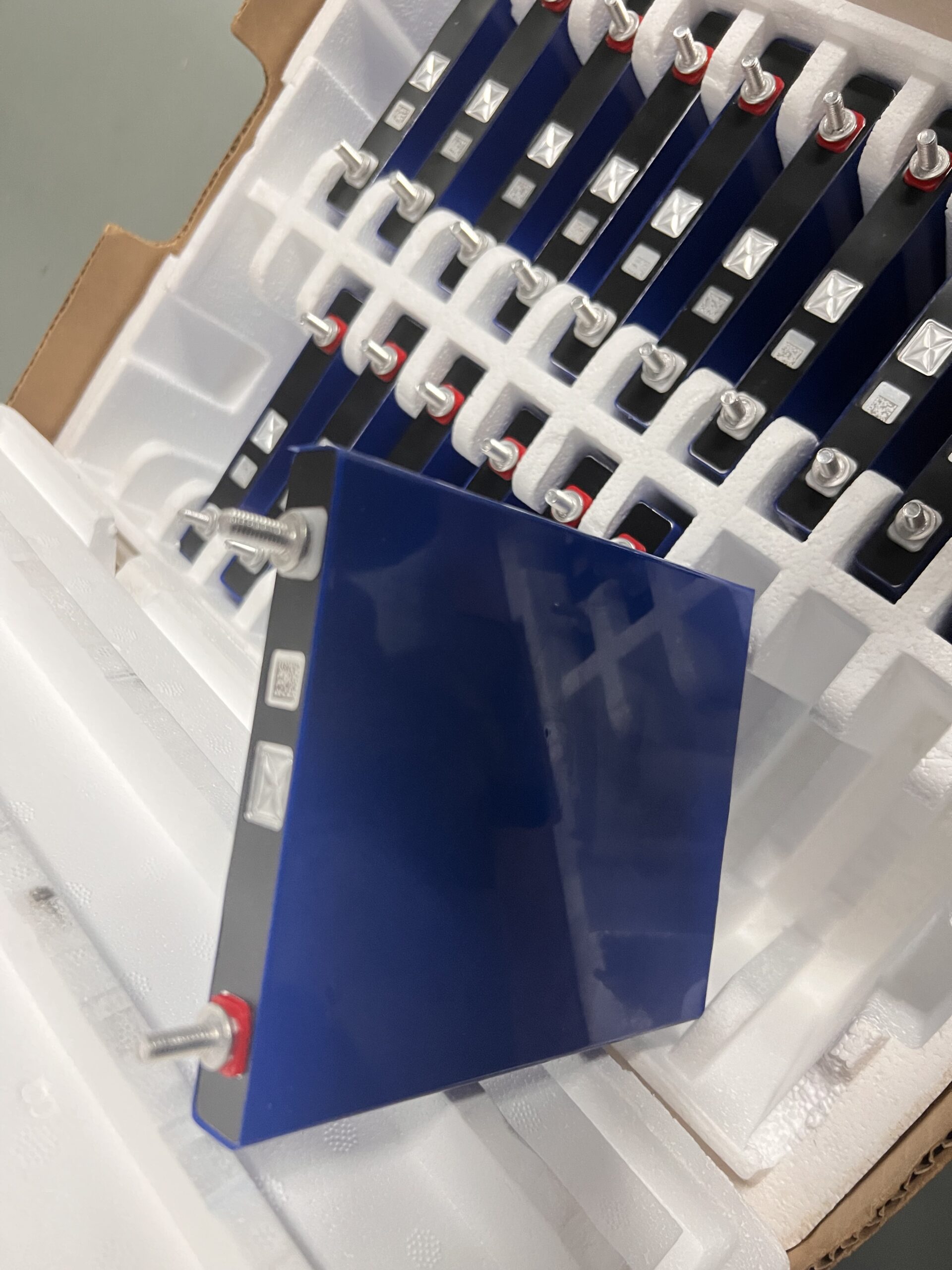

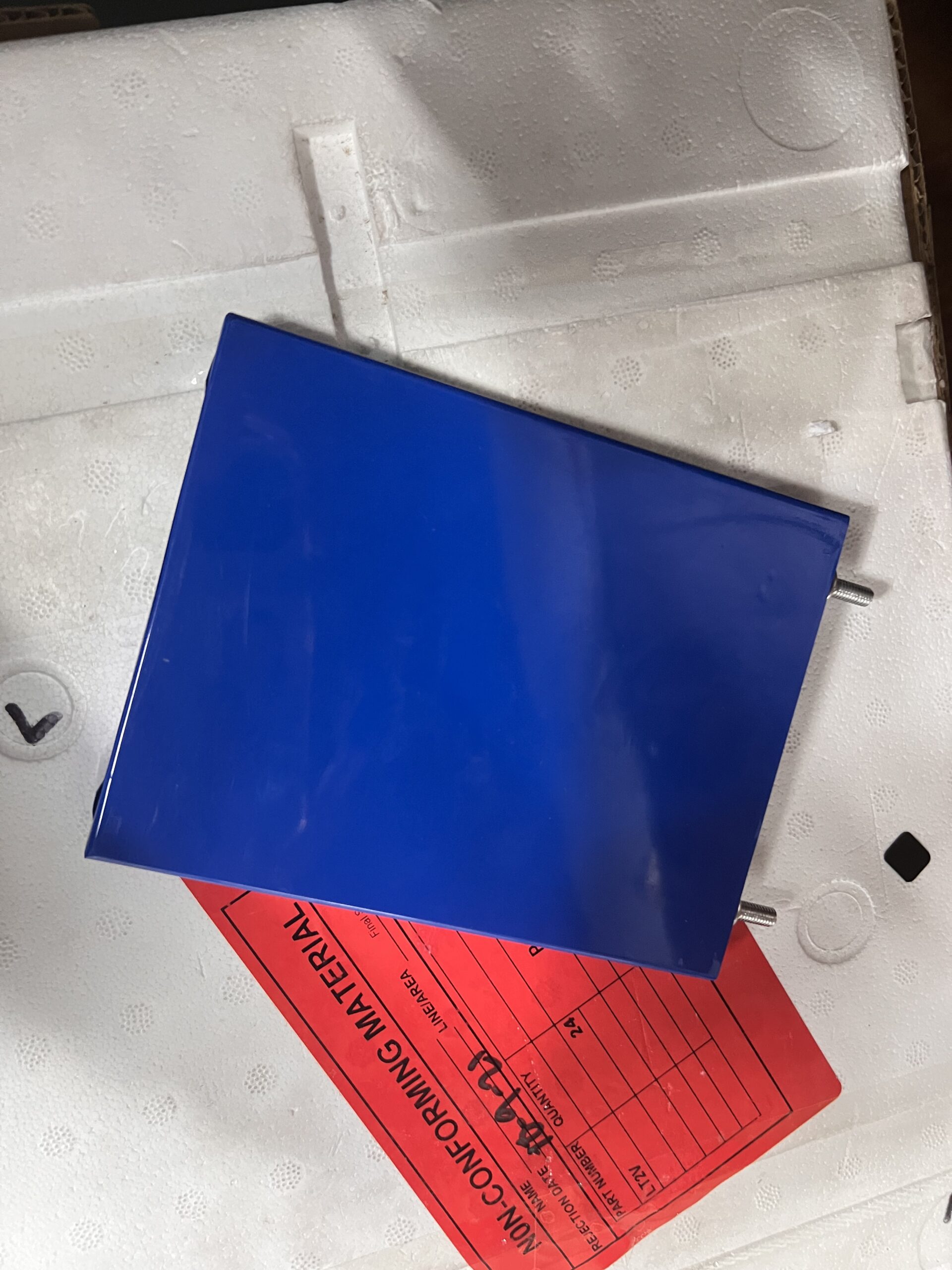

TOSHIBA 2.3V 10Ah LTO Battery : High-Performance LTO Cell

TOSHIBA 2.3V 10Ah LTO Battery addresses critical pain points in energy storage: short cycle life, inefficient discharge rates, and unreliable performance in extreme temperatures. With 20,000+ deep cycles, 70A max discharge, and 2.3V nominal voltage, this robust lithium titanate (LTO) cell delivers reliable power for solar storage, electric vehicles (EVs), and industrial machinery.

⚡ Core Technical Specifications

Parameter	Specification	Conditions
Nominal Capacity	10Ah	0.2C discharge @25°C
Max Continuous Discharge	70A (7C)	-30°C to 60°C
Cycle Life	≥20,000 cycles	80% DOD, 80% capacity retention
Nominal Voltage	2.3V	Stable output range: 1.5V–2.8V
Internal Impedance	≤5mΩ	20% SOC
Weight	460g ±10g	Compact design
Dimensions	112x14x120mm	Space-efficient for EVs

❄️ Extreme Environment Performance

-30°C Operation: Maintains 80% capacity at sub-zero temperatures
60°C Heat Resistance: Industrial-grade thermal stability
Wide Voltage Range: 1.5V–2.8V supports cold-start applications

🔒 Safety & Longevity Advantages

LTO Chemistry: Non-flammable and stable during high-rate discharges
Built-in BMS: Prevents overcharging, short circuits, and overheating
Deep Cycle Endurance: 20,000+ cycles = 10× lifespan vs. lead-acid

🏭 Target Applications

Solar Energy Storage: 20,000 cycles for decade-long off-grid systems
Electric Vehicles: 70A continuous output for e-bikes and scooters
Industrial Equipment: Reliable power for AGVs and forklifts
Telecom Backup: Cold-start capability in extreme conditions

💡 Competitive Edge

Cost Efficiency: 20,000 cycles = 70% lower TCO vs. competitors
Fast Charging: 1C (10A) charging to 80% in 1.5 hours
Lightweight: 460g vs. 6.5kg lead-acid equivalents

📦 Bulk Order Offer (Min. 50 units)

🔥 Limited Promotion:

✅ 50+ units: Free BMS customization
✅ 100+ units: Additional 10% discount + UL certifications
✅ 500+ units: Dedicated technical support

Contact immediately to obtain the latest quotation for TOSHIBA 2.3V 10Ah LTO Battery.
