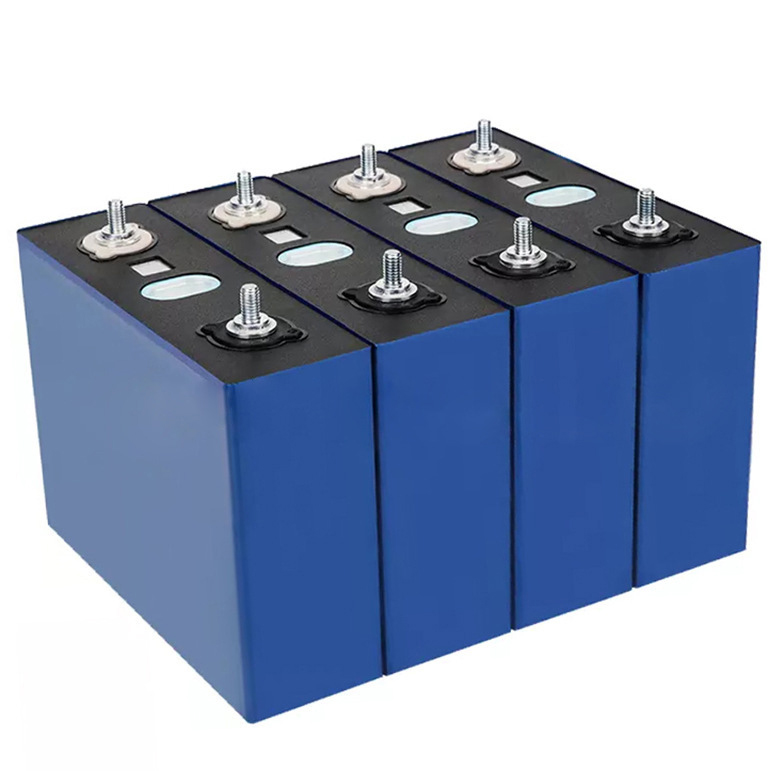

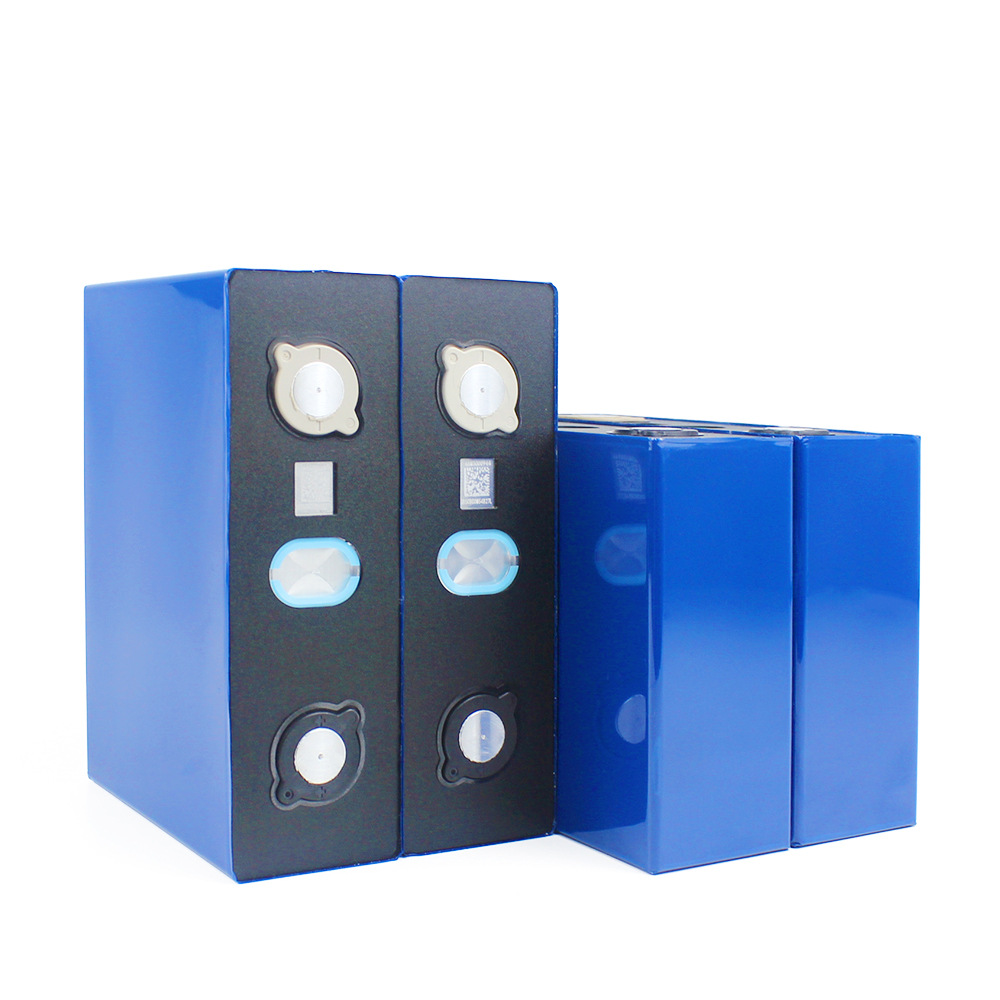

CALB L160F100B 100Ah LiFePO4 prismatic cell solves industry pain points:
⚡ 300A Pulse Discharge (3C for 30s) – Powers heavy-load startups
❄️ -20℃ Arctic Operation – Maintains ≥70% capacity in freezing environments
♻️ 3,500+ Deep Cycles @25°C – 75% longer lifespan than standard 2000-cycle cells
Certified Specifications (Per CALB Spec A/0)
| Parameter | Value | Competitive Edge |
|---|---|---|
| Nominal Capacity | 100Ah ±1% | 320Wh energy per cell |
| Continuous Discharge | 100A (1C) | Stable for 24/7 operation |
| Cycle Life | ≥3,500 cycles | ≤$0.012/cycle cost |
| Low-Temp Performance | ≥70%@-20℃ | Outperforms competitors’ 50-60% |

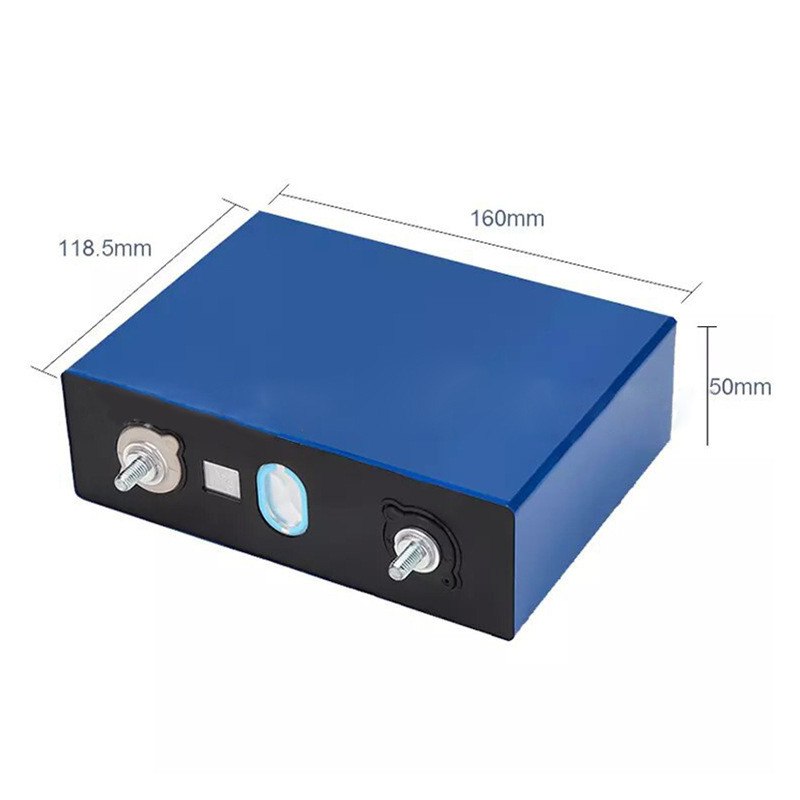

| Dimensions (W×T×H) | 160×50×130mm | Compact stacking design |
| Weight | 2.0±0.1kg | 160Wh/kg energy density |
Safety & Reliability
✅ GB/T 31485 Certified – Passes nail penetration/crush/130°C thermal tests
✅ Vibration-Resistant – Survives 1.5m drop tests (per section 4.4.4)
✅ <3% Monthly Self-Discharge – Ready-to-deploy after storage
Ideal Applications
• Telecom Backup: 48V tower power systems
• AGV Power: High-torque logistics robots
• Solar ESS: Off-grid energy storage banks
Contact us immediately to obtain the latest price and data sheet
