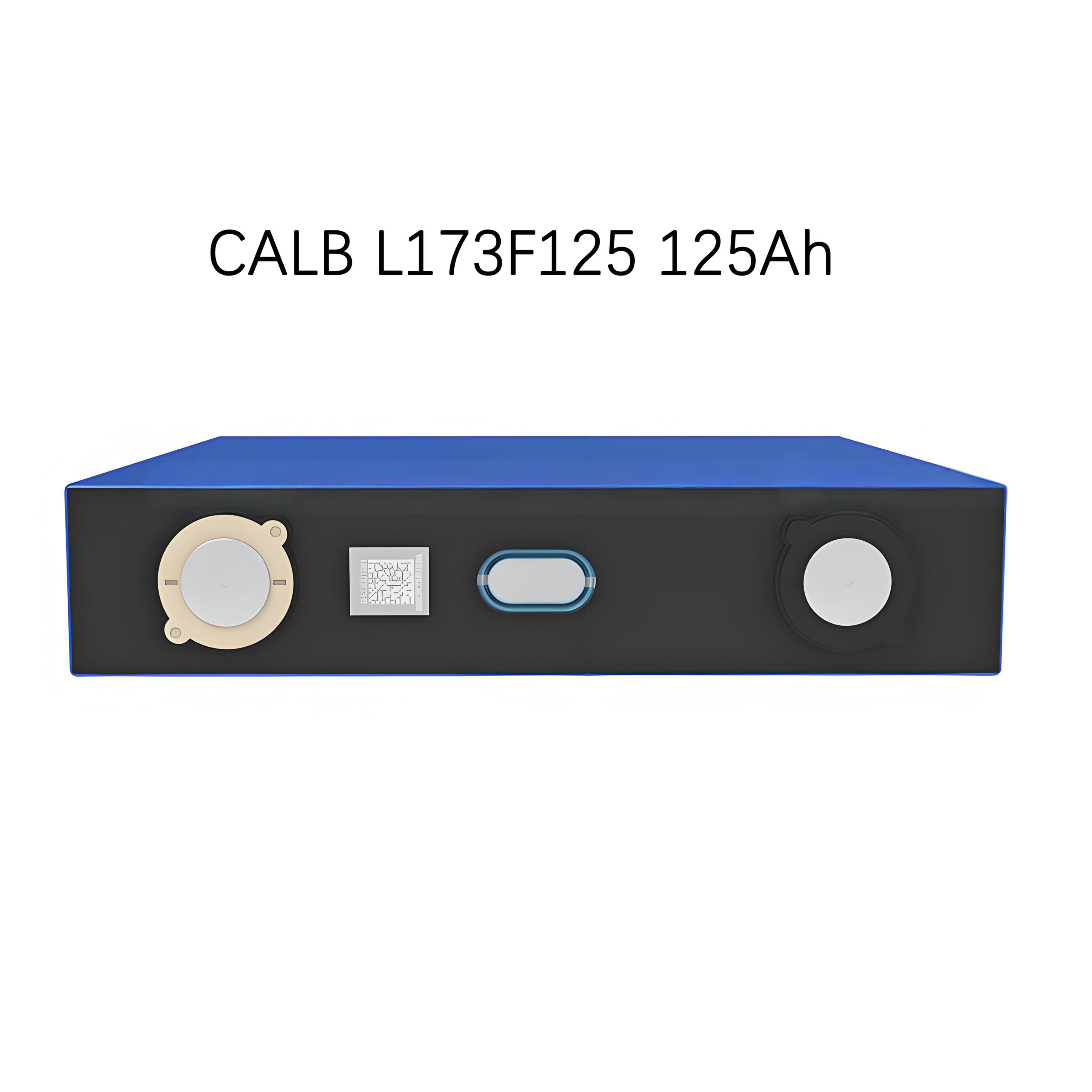

CALB L173F125 125Ah prismatic LiFePO4 cell solves critical industrial challenges:
⚡ 413A Peak Discharge (10s pulse) – Powers high-torque equipment startups
❄️ -30℃ Arctic Operation – Full functionality in extreme cold
♻️ 2,600+ Deep Cycles @25°C – 50% longer lifespan than standard cells
Certified Specifications (Per CALB Spec A/0)
| Parameter | Value | Competitive Edge |
|---|---|---|
| Nominal Capacity | 125Ah ±1% | 456Wh energy density |
| Continuous Discharge | 125A (1C) | Stable for 24/7 operation |
| Cycle Life | ≥2,600 cycles | ≤$0.009/cycle cost |
| DC Internal Resistance | ≤0.81mΩ | Minimizes voltage sag |

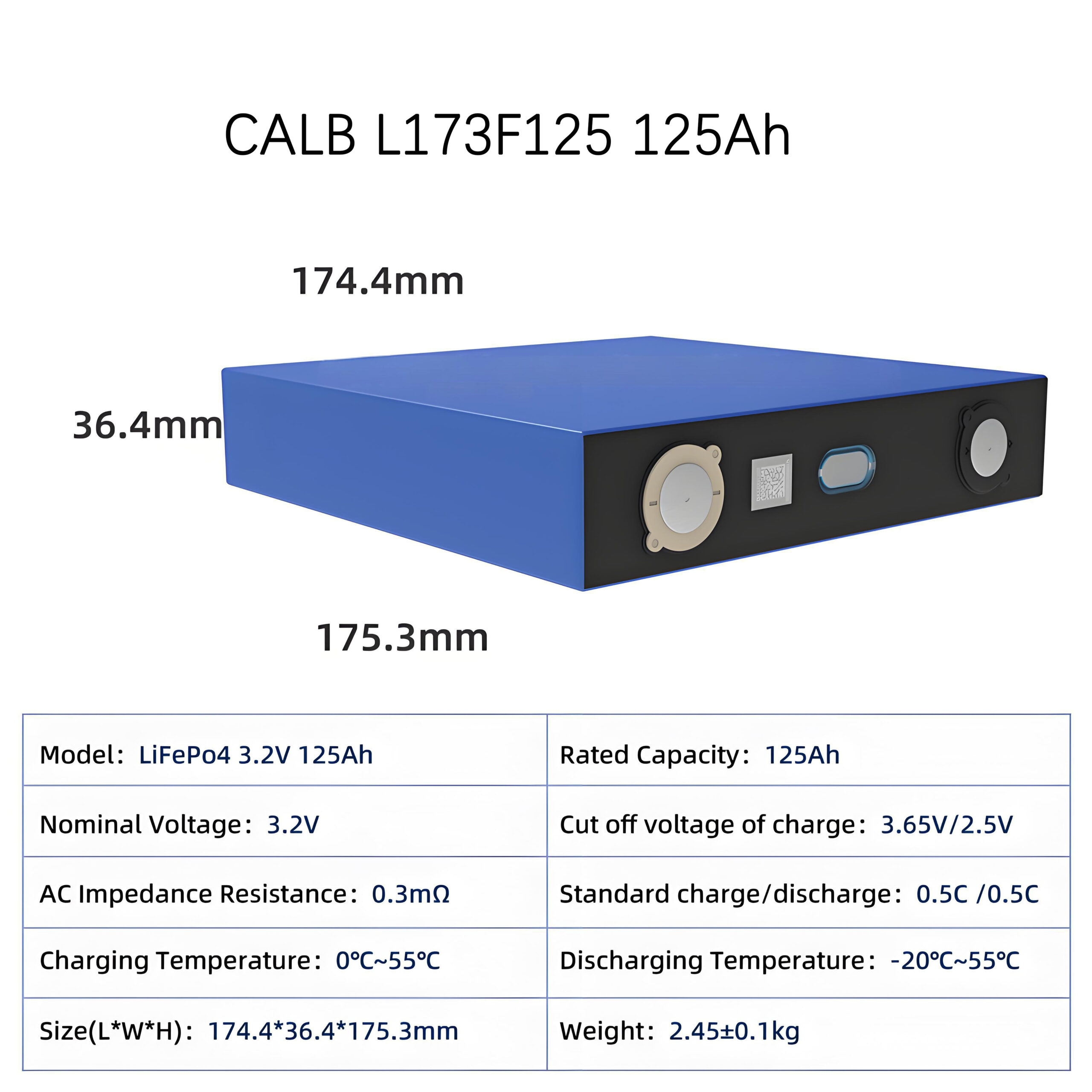

| Dimensions (L×T×H) | 174.4×36.4×188.5mm | Ultra-slim design (36.4mm) |
| Safety Certification | EUCAR Level 2-4 | Passes nail/crush/130°C tests |
Extreme Environment Performance
✅ Saltwater-Resistant – 2h immersion in 3.5% NaCl solution
✅ Vibration-Proof – 8h XYZ-axis vibration (per GB/T)
✅ 800kgf Compression – Reinforced aluminum casing
Ideal Applications
• Industrial Robotics: High-drain automation systems
• Marine Equipment: Saltwater-resistant power systems
• Telecom Backup: 48V tower power stations
