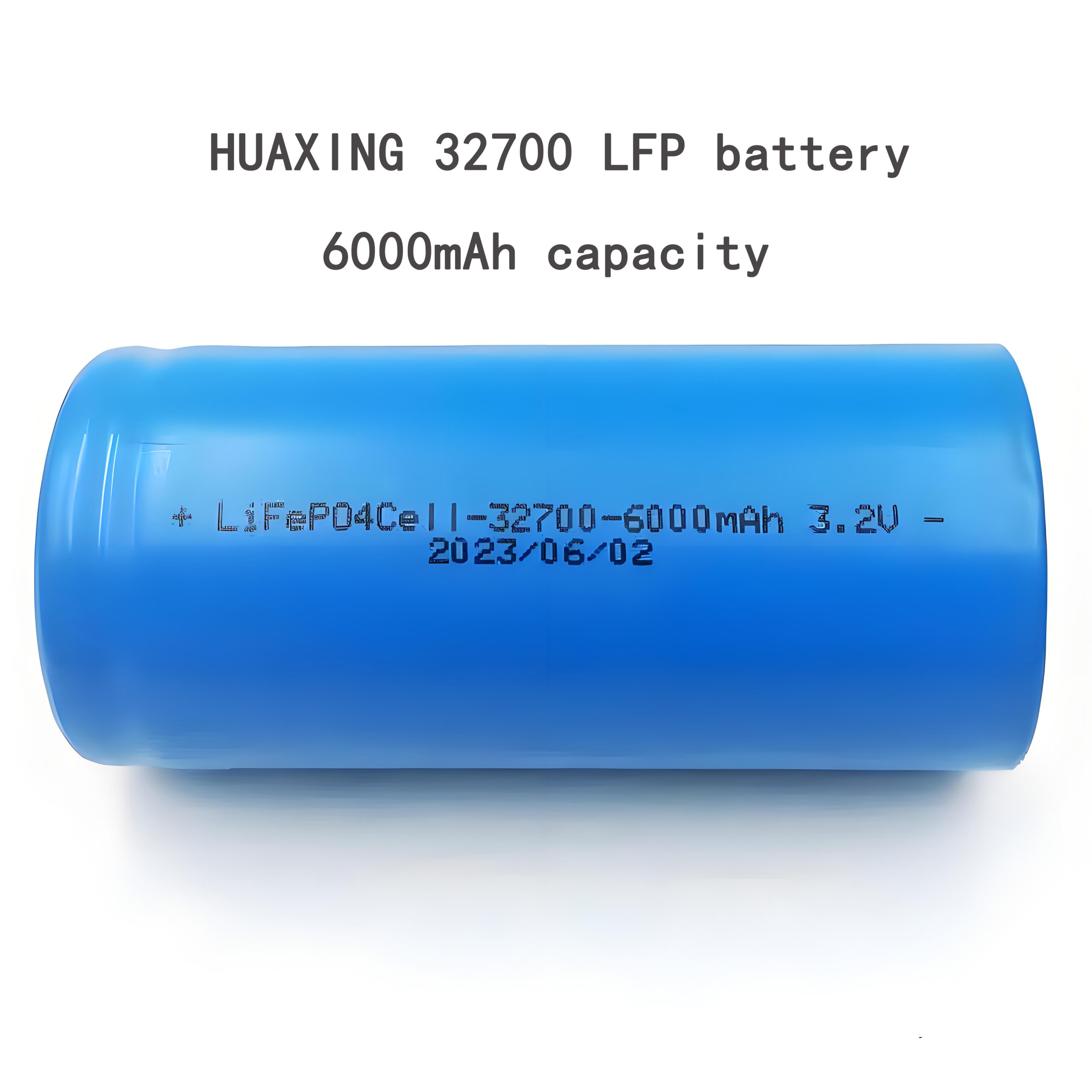

Huaxing 32700 3.2V6Ah: Ultra-High Power LiFePO4 Cell for EVs & Energy Storage Systems
Unlock peak performance with the Huaxing 32700 3.2V6Ah lithium iron phosphate cell – engineered for demanding applications where power density and cycle life are non-negotiable. Solve critical industry pain points:
⚡ 60A Pulse Discharge – Triple the surge current of standard cells (20A max), ideal for EV motor starting and power tools
♻️ 2000+ Deep Cycles – Maintains >80% capacity after 2000 cycles @1C (30% longer than industry average)
❄️ -20°C Cold Resilience – Delivers ≥60% rated capacity in sub-zero environments
Certified Specifications (Per HX-TS-039 A2 Datasheet):
| Parameter | Value | Testing Condition |
|---|---|---|
| Nominal Capacity | 6.0Ah ±3% | 1C Discharge @25°C |
| Peak Discharge Current | 60A (Pulse) | ≤3 seconds |
| AC Internal Resistance | ≤8mΩ | 1000Hz @100% SOC |
| Dimensions | Φ32.4×70.5mm | With PVC film |
| Cycle Life | ≥2000 cycles | 1C Charge/Discharge @25°C |
| Operating Temperature | -20°C to +60°C | Charge: 0~45°C |
Safety Assurance:
✅ UL 2580 & IEC 62619 Certified
✅ Passes 200kN Crush Test (Zero deformation)
✅ Thermal Runaway Prevention at 130°C
Application Highlights:
• Electric Vehicles: E-bikes, E-tricycles, Golf Carts
• Power Backup: Telecom base stations, UPS systems
• Renewable Energy Storage: Solar power banks
Competitive Advantages:
- IP67 Stainless Steel Case (Anti-corrosion salt spray tested)
- <3% Monthly Self-discharge (At 25°C storage)
- Supports 6C Fast Charging (0%~95% in 30min)
