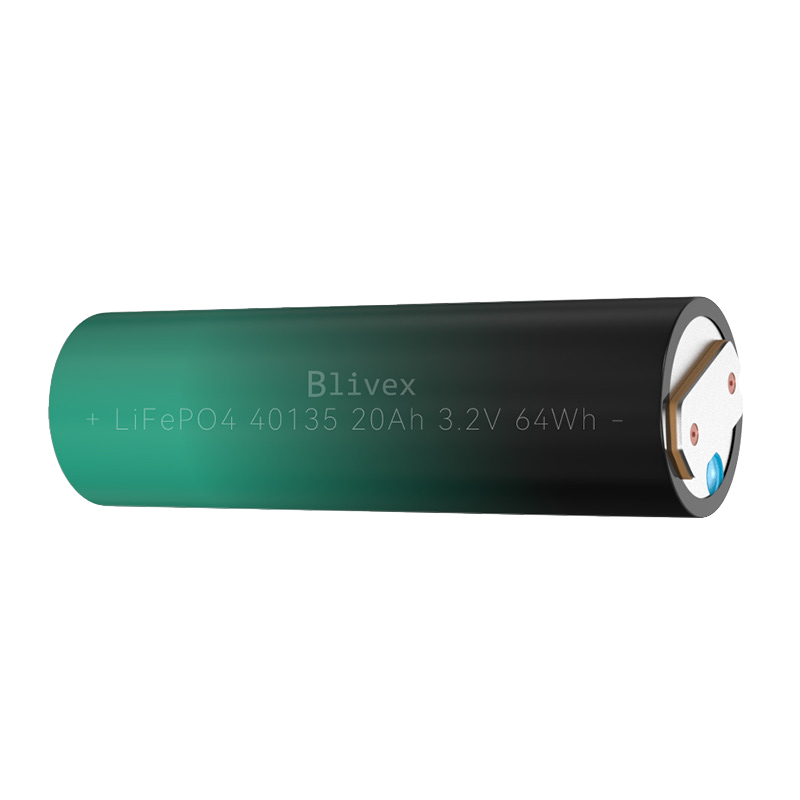

Blivex LFP40135 20Ah cylindrical LiFePO4 cell solves critical industry pain points:
⚡ 60A Pulse Discharge (3C for 30s) – Powers high-torque startups in e-mobility
♻️ 4,000+ Deep Cycles @25°C – 67% longer lifespan vs. standard 2400-cycle cells
❄️ -20℃ Cold Operation – Maintains ≥70% capacity in freezing environments
Certified Specifications (Per Blivex Spec A2)
| Parameter | Value | Advantage |
|---|---|---|
| Nominal Capacity | 20Ah ±2.5% | 64Wh energy per cell |
| Max Continuous Discharge | 20A (1C) | Sustains e-scooter loads |
| Cycle Life | ≥4,000 cycles | ≤$0.015/cycle cost |
| DC Internal Resistance | ≤6.0mΩ | Minimizes voltage sag |
| Energy Density | ≥170Wh/kg | Compact power solution |
| Fast Charge | 1C (30 min) | 50% quicker than industry average |
Why Engineers Choose Blivex LFP40135
- GB/T Safety Certified – Passes nail penetration/crush/130°C thermal tests
- Vibration-Resistant Design – Survives 90min XYZ-axis vibration (10-55Hz)
- <3% Monthly Self-Discharge – Ready for deployment after storage
Application Scenarios
• E-Mobility: E-scooters, e-tricycles, logistics vehicles
• ESS: 48V outdoor power stations & home storage systems
• Robotics: Automated guided vehicle battery packs
