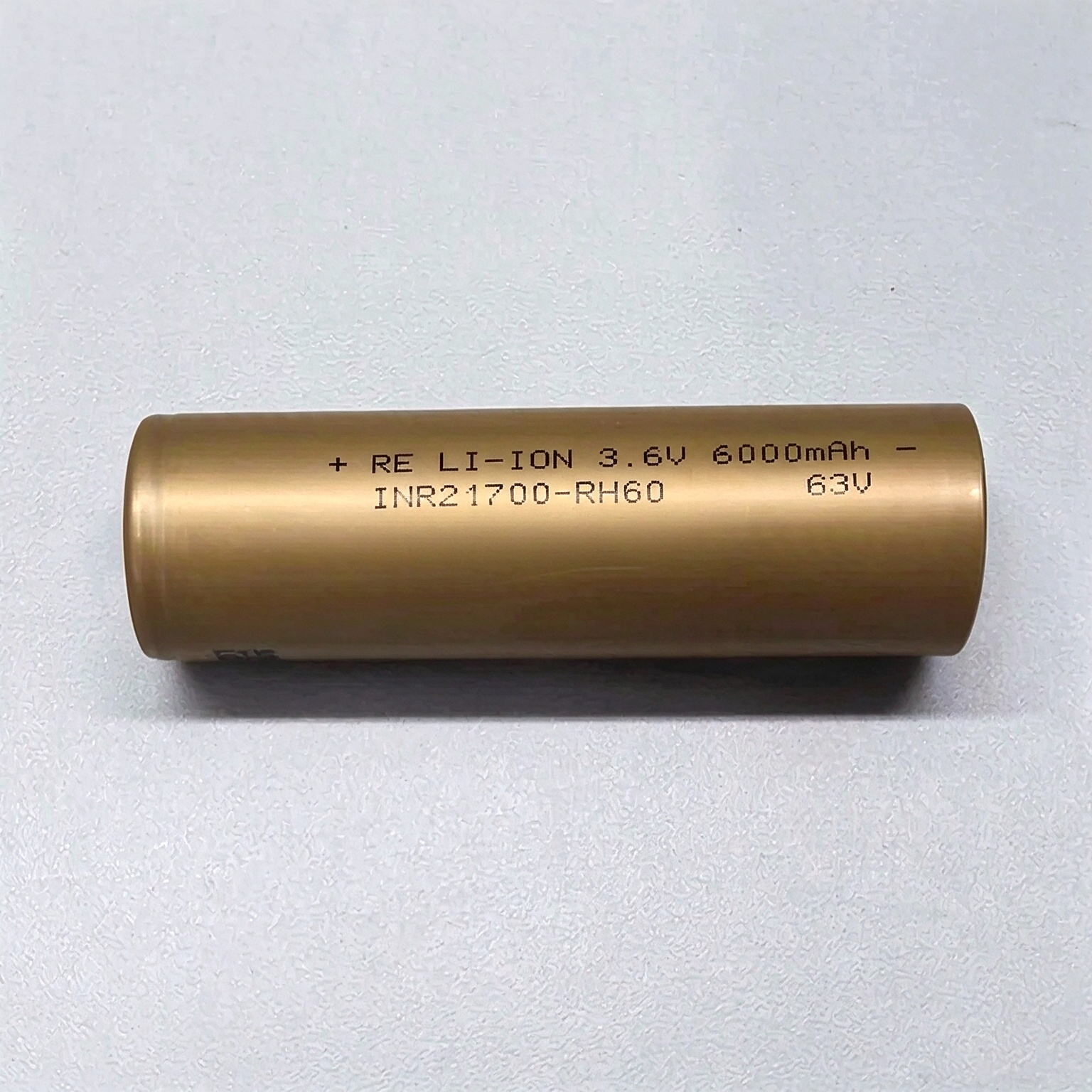

INR21700-RH60 21700 Li-ion Cell – 5850mAh, 20A Continuous Discharge
High-capacity, high-rate 21700 cell for power tools, e-mobility, and energy storage packs.
The INR21700-RH60 from Jiangsu Reliance Energy is a rechargeable lithium-ion cell designed for pack builders and OEM buyers. It combines 5850mAh minimum capacity, low internal resistance, and stable high-current discharge.
We keep large stock and offer competitive bulk pricing. Contact us for current price and lead time.
Why buyers choose the INR21700-RH60
-
5850mAh minimum capacity at 0.2C, 2.5V cut-off, 25°C.
-
3.6V nominal voltage and about 21Wh nominal energy.
-
20A maximum continuous discharge with 80°C temperature cut-off.
-
6A maximum continuous charge; standard charge 3A, standard discharge 1.2A. 1C = 6.0A.
-
Low ACIR ≤7mΩ at 1kHz, helping reduce heat and improve pack efficiency.
-
Strong rate performance: ≥90% relative capacity at 20A; ≥93% at 12A; ≥95% at 6A.
-
Wide discharge range: -40°C to 80°C; charge from -10°C to 45°C.
-
500-cycle test at 6A charge / 12A discharge, 25°C.
-
Safety tested according to UN38.3, IEC62133, and UL1642 methods: no fire, no explosion in crush, overcharge, forced discharge, short circuit, and heating tests.
-
Stable storage: after 30 days at 60°C, retained capacity ≥80%, recovered capacity ≥90%.
Key specifications
| Item | Specification |
|---|---|
| Model | INR21700-RH60 |
| Nominal voltage | 3.60V |
| Minimum capacity | 5850mAh (0.2C to 2.5V, 25°C) |
| Max continuous discharge | 20A (with 80°C cut-off) |
| Max continuous charge | 6A |
| AC internal resistance | ≤7mΩ (1kHz AC) |
| Cycle life | 500 cycles at 6A charge / 12A discharge, 25°C |
| Dimensions | Max 21.6mm diameter × 70.9mm height |
| Weight | ≤71.0g |
| Ex-factory voltage | 3.50–3.57V |
Applications
Suitable for high-drain battery packs such as:
-
Power tools and garden tools
-
Cordless vacuum cleaners
-
E-bikes, e-scooters, and light electric vehicles
-
Energy storage systems
-
Other 21700 pack designs requiring high capacity and high current
For pack builders
Use a BMS/PCM with overcharge, over-discharge, overcurrent, over-temperature, and short-circuit protection. The protection circuit should monitor each cell and stop charging or discharging when limits are exceeded.
For long storage, keep cell voltage between 3.50V and 3.95V. Recharge periodically to prevent over-discharge. Follow the datasheet for charge and discharge temperature limits.
Stock and pricing
We have large stock available and offer competitive pricing for volume orders. Whether you need samples, small batches, or container-level quantities, we can support your project.
Send us your required quantity. Our sales team will provide price, lead time, and shipping options.
