The Voltage Sag Problem in High‑Capacity Cells
Most 5000mAh cells look good on paper, but the LinkData 50T 21700 cell is different. Under sustained high‑current load, voltage sag is severe in typical cells. Equipment underperforms, heat builds, and cycle life drops. This cell eliminates that gap entirely.
Key Technical Specifications
-
Capacity: 5000mAh (typ.) / 4900mAh (min.)
-
Nominal voltage: 3.6V
-
Max continuous discharge: 60A (no sag)
-
Max pulse (10s): 125A
-
AC impedance: ≤4mΩ
-
Cycle life: 1000 cycles ≥80% (1C/1C)
-
Discharge temp: down to ‑40°C
These numbers explain why this model stands out among 21700 options.
Why 60A Continuous Output Is a Game Changer
First, most 5000mAh cells start sagging above 30A. This one, however, stays flat to 60A. Consequently, your tools deliver full power. E‑motorcycles accelerate without hesitation. Industrial equipment runs reliably under heavy loads – all thanks to its robust design.
Pulse Power for Transient Loads
Moreover, the 125A pulse rating covers sudden surges – rapid acceleration, stall, or startup inrush. Where other cells trip protection, this unit handles them effortlessly. Thus, you avoid unexpected shutdowns in critical moments, keeping operations smooth and safe.

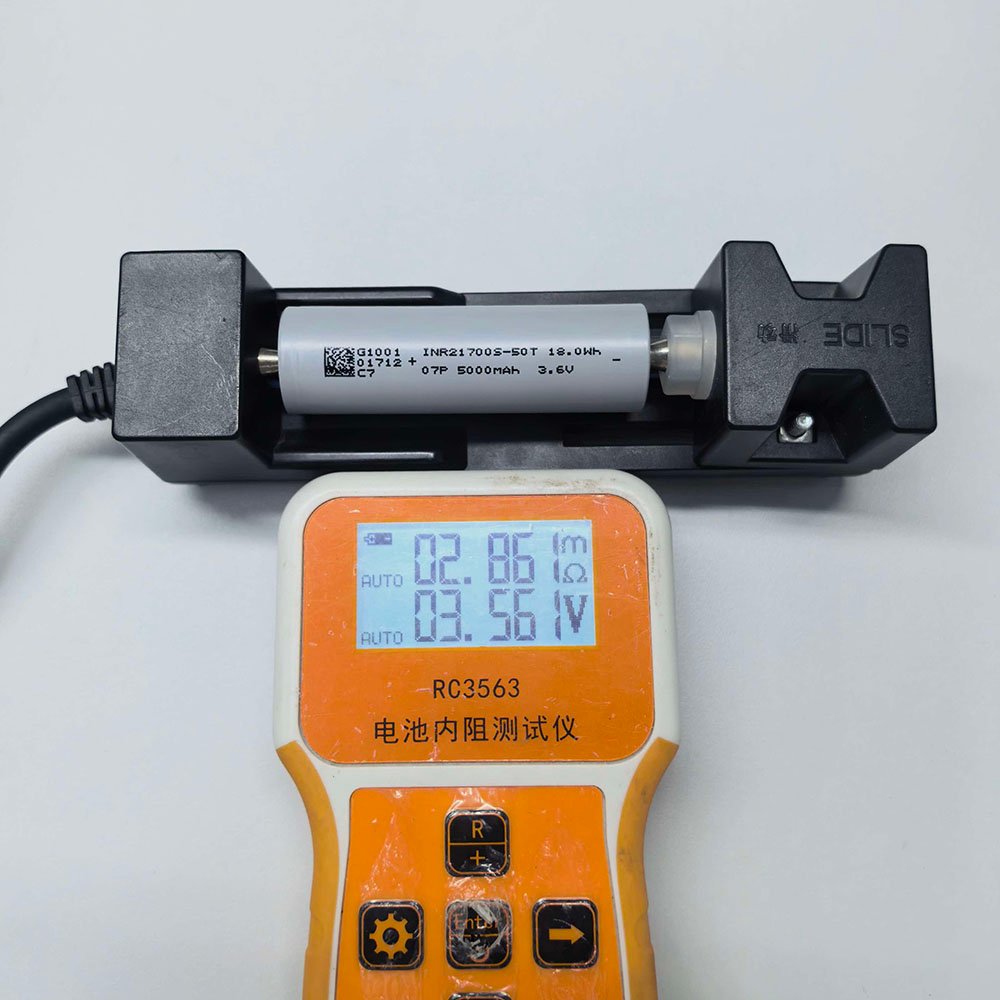

Ultra‑Low Impedance for Efficiency
Additionally, AC impedance is ≤4mΩ – far lower than Samsung 50S (14mΩ) and Molicel P50B (8mΩ). As a result, internal heat generation is minimal. More stored energy becomes usable output. Therefore, your device runs cooler and longer on each charge.
Verified Cycle Life Under Real Conditions
Furthermore, the 1000‑cycle rating is verified at 1C/1C – not lab‑friendly 0.5C. Even under 8A charge / 40A discharge, it retains ≥60% after 600 cycles. So, you get durable performance in actual field use, not just on paper.
Recommended Use Cases
Who benefits most from this high‑rate 21700? High‑power tools, e‑motorcycles, light EVs, industrial machinery, and portable power stations. Its ‑40°C discharge also makes it excellent for cold‑climate outdoor equipment and mobile power systems.
When to Consider Alternatives
On the other hand, standard e‑bikes and stationary storage do not require such extreme rate capability. For those applications, lower‑cost cells may offer better cost‑effectiveness. Choose this model only when you truly need its high‑power advantage.
The Bottom Line – Reliable and Transparent
In short, this 21700 cell does not overpromise. It does not game test conditions. The numbers match what you see under real loads, cycle after cycle. If your project demands consistent high power and proven longevity, it is worth sampling.
Stock and Sample Availability
BECELL has the LinkData 50T 21700 cell in stock now. We welcome inquiries for samples, datasheets, or independent verification. Contact our sales team – we are ready to support your evaluation and integration.
