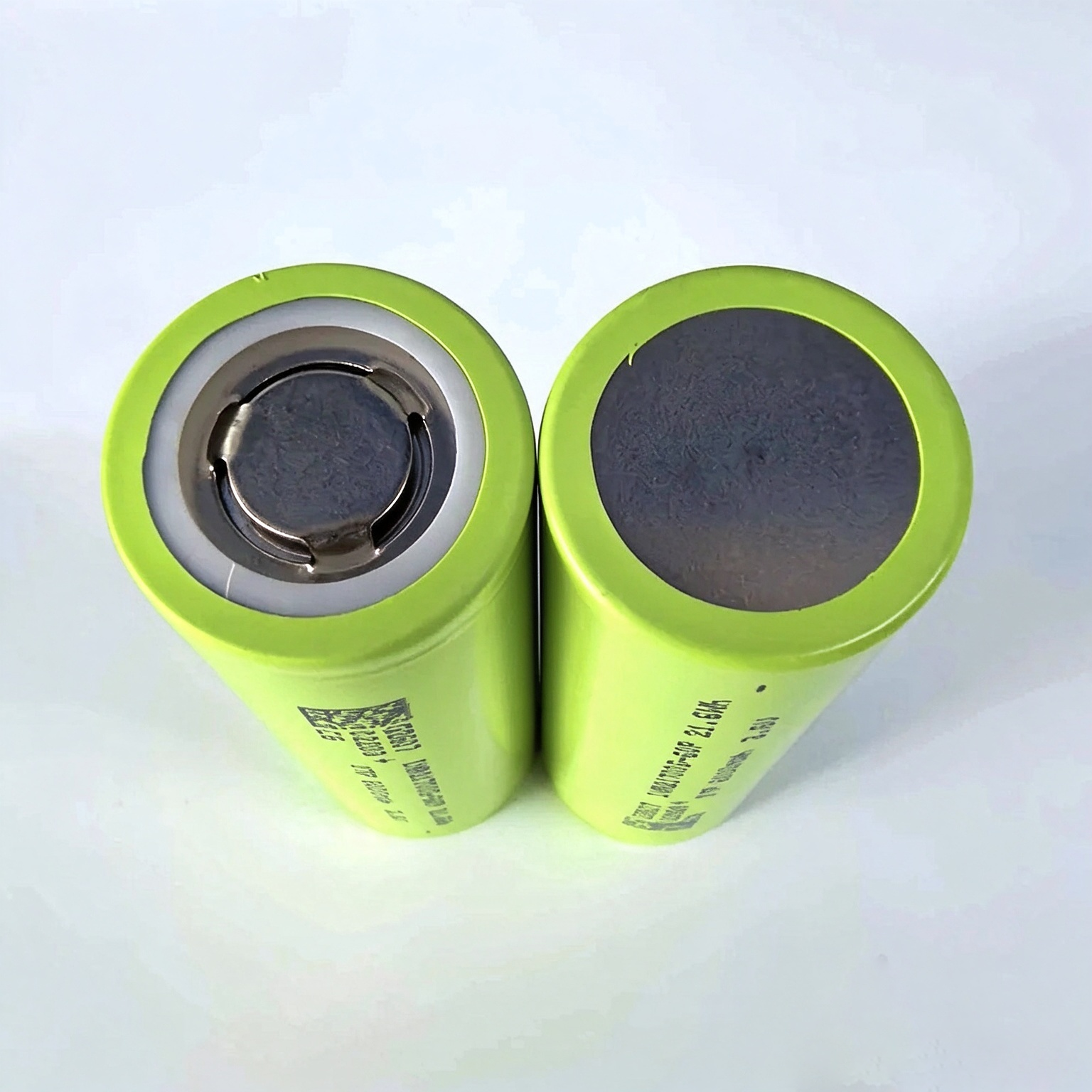

Linkdata INR21700S‑60P 21700 Lithium‑ion Cell

Product Overview

The INR21700S-60P lithium ion cell is a grade-A 21700 6000mAh high power lithium-ion cell purpose-built for high-drain battery pack assemblies.

This cylindrical NCM cell delivers reliable high-current output and wide-temperature adaptability, making it well suited for demanding industrial and portable power applications.

Core Performance Highlights

• True high power output: 60A continuous discharge (80 ℃ temperature cut‑off); 110A /10‑second pulse discharge at 50% SOC, 25 ℃
• Excellent low‑temperature performance: stable discharge capacity even at ‑40 ℃, works well for cold‑climate equipment
• Good cycle durability: ≥80 % capacity retention after 1000 cycles under 1C charge /1C discharge condition
• Verified safety performance, passed GB31241‑2022 test items including short‑circuit, over‑charge, crush, thermal shock, temperature cycling, drop and vibration
• Low internal resistance: AC internal resistance ≤4.5 mΩ; DC resistance ≤13 mΩ (50 % SOC, 10 s discharge)
• Factory fresh grade‑A cells. Shipped at 20‑30 % SOC for safe transportation.

Technical Specifications



Item	Parameter
Model	INR21700S‑60P
Chemistry	NCM Cylindrical Lithium‑ion
Typical Capacity	6000 mAh, Minimum 5880 mAh
Nominal Voltage	3.6 V
Nominal Energy	Min 21.1 Wh
Charge Cut‑off Voltage	4.20 V
Discharge Cut‑off Voltage	2.50 V (system recommended ≥3.0 V)
Max Continuous Charge Current	8 A; Fast charge support up to 12 A
Max Continuous Discharge Current	60 A (80 ℃ temperature protection trigger)
Max Pulse Discharge	110 A for 10 s (25 ℃, 50 % SOC)

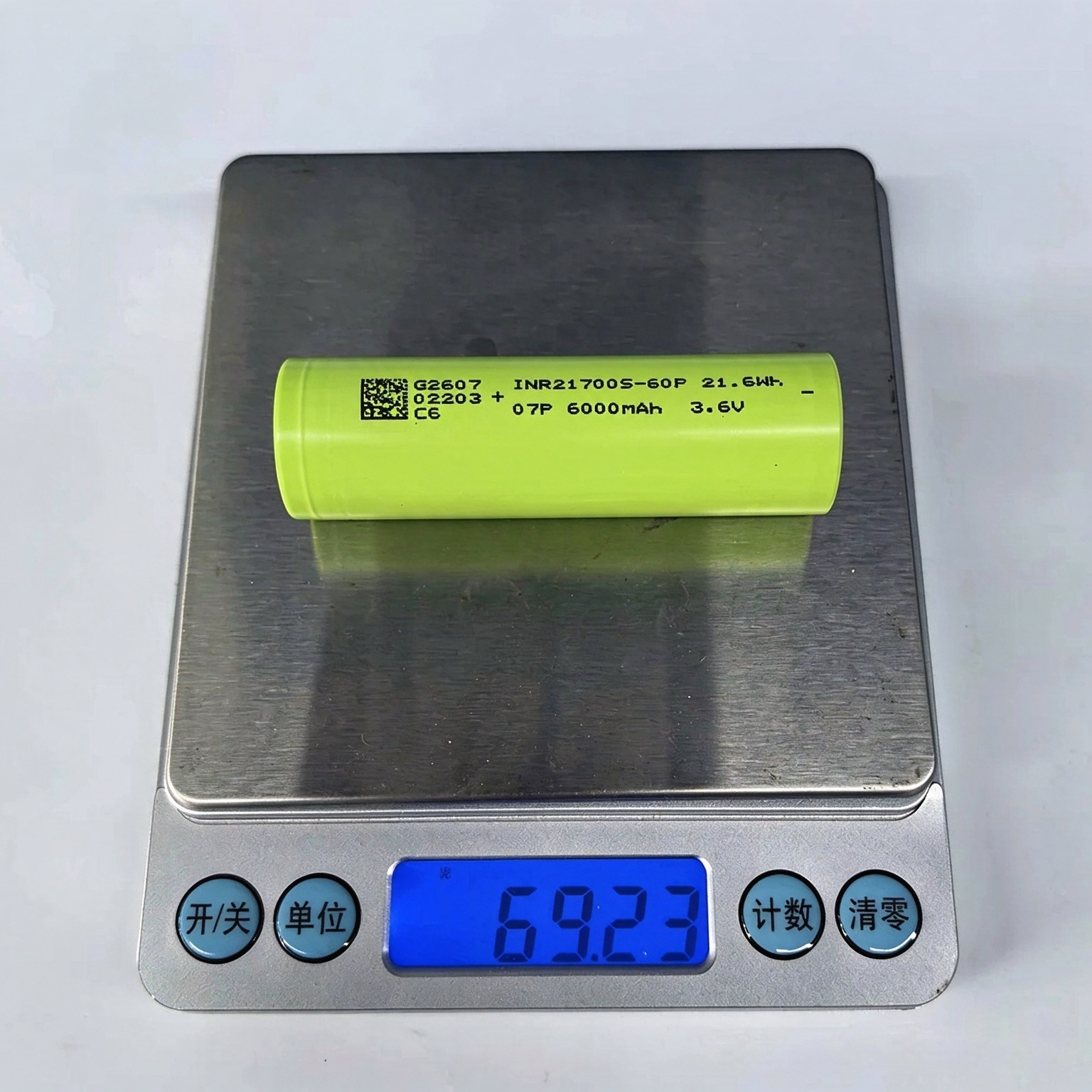

Cell Weight	68.0 ± 1.5 g
Dimensions	Ø21.35 ± 0.15 mm; Height 70.8 ± 0.2 mm
AC Internal Resistance	≤4.5 mΩ (1 kHz)
DC Internal Resistance	≤13 mΩ (50 % SOC, 10 s)
Charge Temperature Range	‑10 ℃ ~ +60 ℃ (recommended below 45 ℃)
Discharge Temperature Range	‑40 ℃ ~ +80 ℃ (recommended below 60 ℃)
Shell Sleeve Color	Green
Shipping Open‑circuit Voltage	3580 mV‑3600 mV

Typical Applications

This INR21700S‑60P high drain cell fits many high‑current battery pack projects:

• E‑bike & e‑scooter battery packs
• High‑power portable energy storage
• Robotics and heavy‑duty power tools
• Cold‑region outdoor equipment
• Industrial power supplies, special device battery assemblies

Important note: Must use proper BMS protection circuit when assembling battery packs. Spot‑welding is required for cell connection; direct soldering on cell can cause permanent damage. Do not mix cells of different batches in series connection.

Our Supply Advantage

✅ Mass inventory in stock, fast lead‑time for bulk orders

✅ 100 % grade‑A original Linkdata cells, complete datasheet support

✅ Competitive wholesale price, volume‑based discount available

✅ Provide MSDS, UN38.3 test documents for shipping

✅ Support sample order for performance validation before mass purchase
