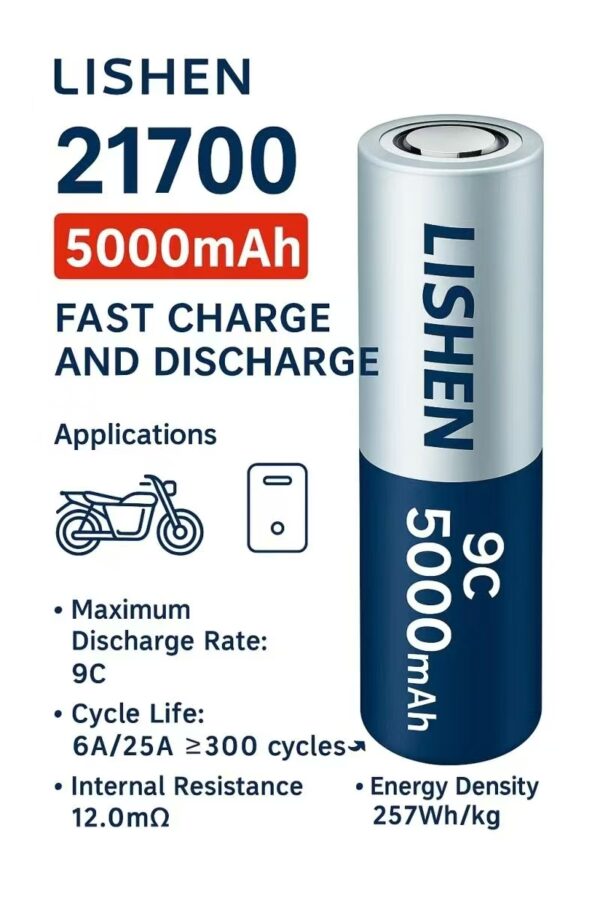

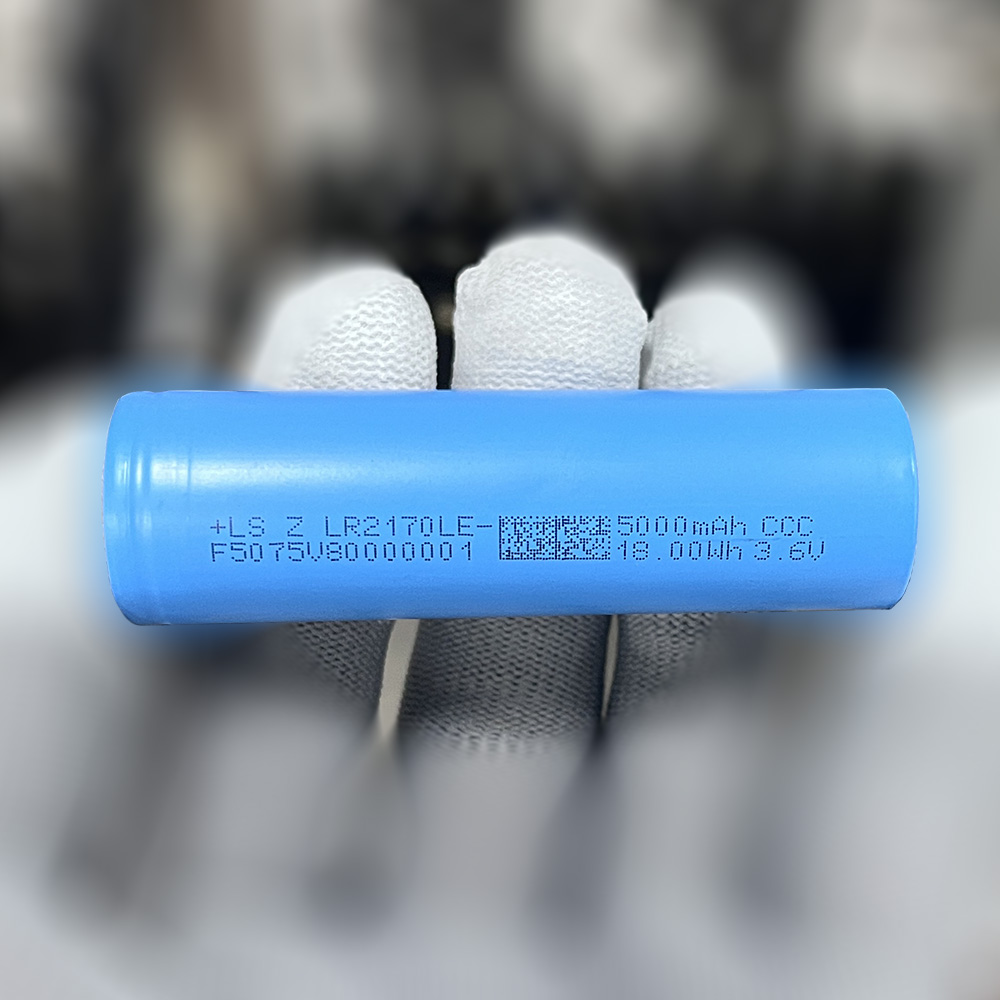

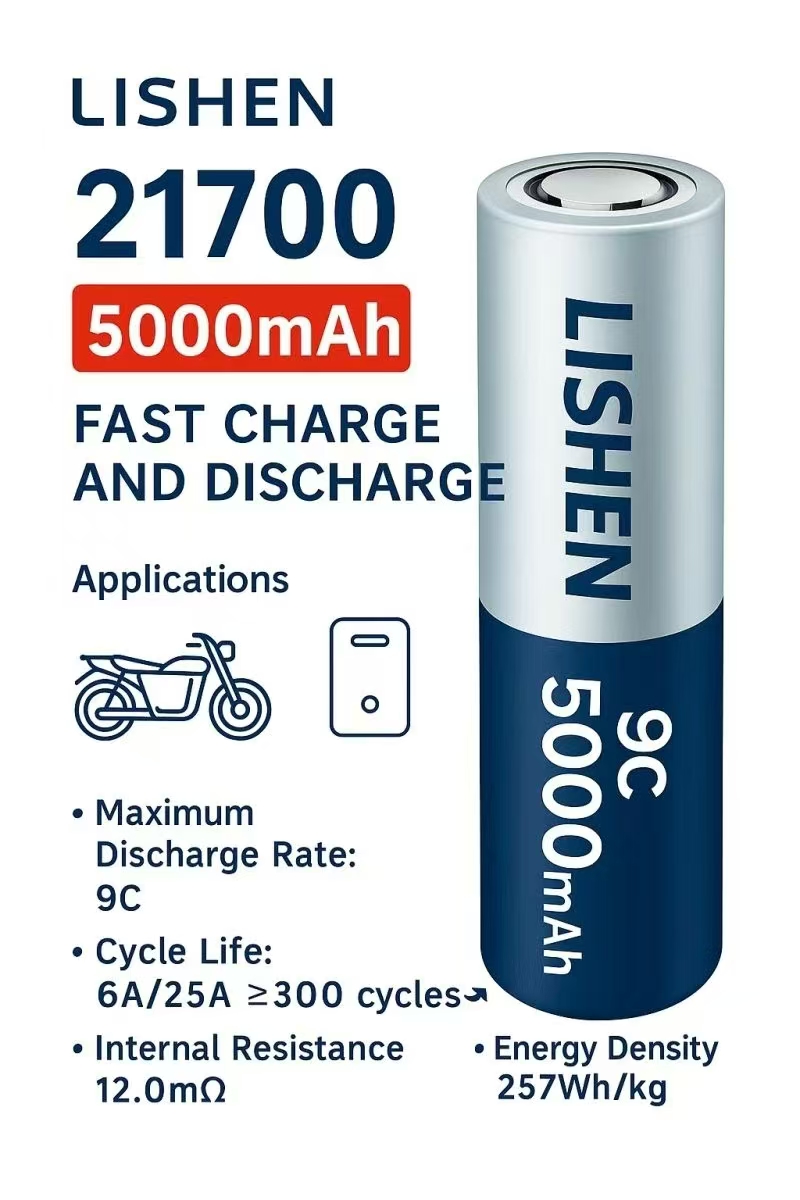

LS LR2170LE 9C Discharge Battery delivers unmatched power density:
⚡ 45A Max Discharge – Supports high-torque tools and EV systems (Spec 3.12)
❄️ -20℃ Cold Operation – Maintains 70% capacity at -10°C (Spec 3.15)
♻️ 300+ Deep Cycles @25A – 60% capacity retention after 300 cycles (Spec 7.5.1)
Certified Specifications
| Parameter | Value | Competitive Edge |
|---|---|---|
| Nominal Capacity | 5000mAh | 18Wh energy output |
| DC Impedance | ≤14mΩ | Minimizes voltage drop (Spec 7.3) |
| Dimensions | 21.2×70.5mm | Compact 21700 form factor |
| Safety Compliance | UL/IEC62133 | Passes crush/short-circuit tests (Sec 8) |
Critical Application Notes
⚠️ Mandatory BMS Integration
• Exclusive for pack assembly (Sec 1.4.1)
• Requires temperature cut-off at 80°C (Spec 3.16)
• Parallel connection needs ≤4mΩ resistance matching (Spec 1.5.1)
Ideal Applications
• Power Tools: Drills, saws, high-torque motors
• E-Bikes: Mountain bikes requiring burst power
• Robotics: AGVs and industrial automation
OEM Partnership Offer
✅MOQ: Pallet quantity (130 cells/box)
✅ Custom BMS design support
🔥Contact immediately to obtain the latest quotation and datasheet
