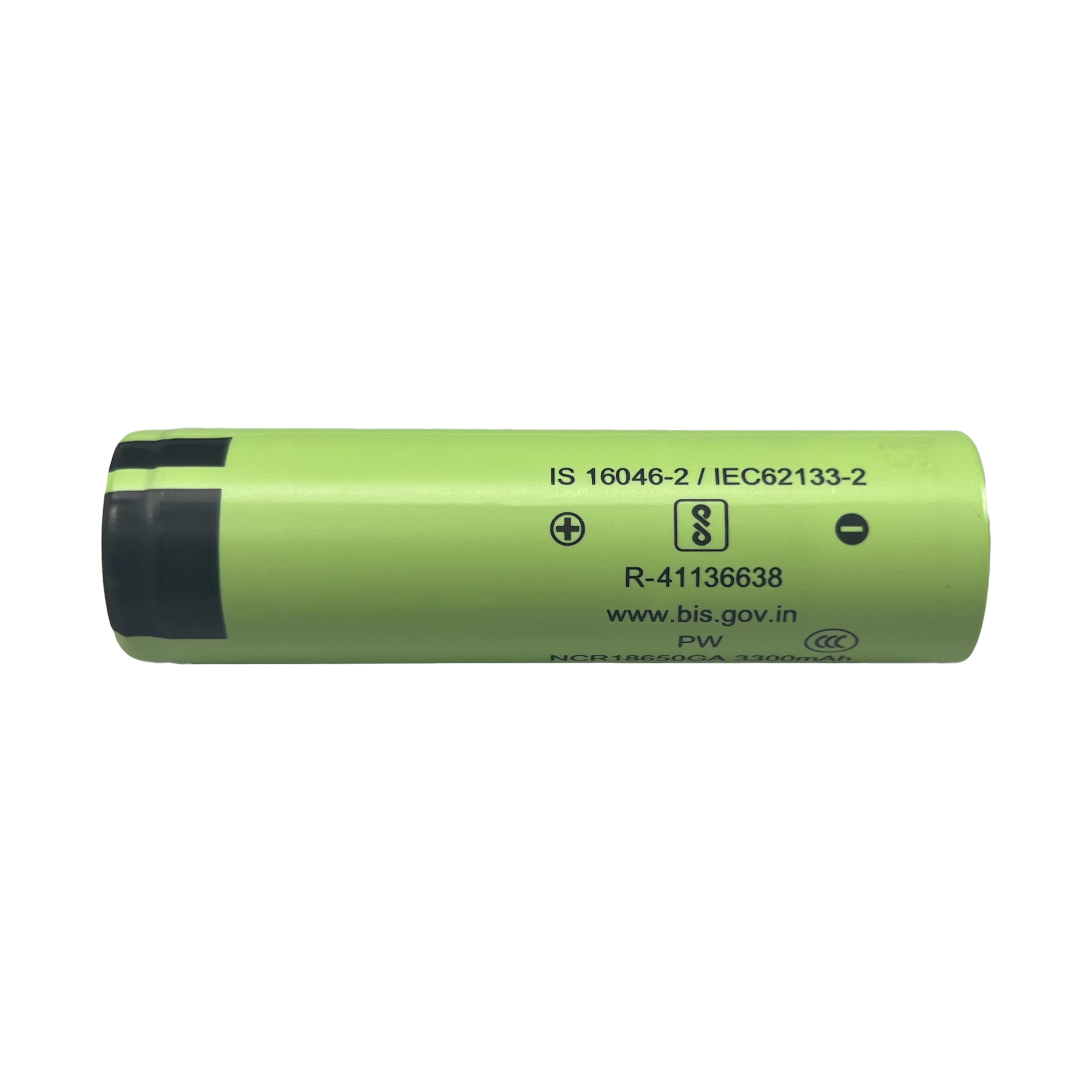

Panasonic NCR18650GA: High-Capacity Li-ion Cell for Industrial Power Solutions
The Panasonic NCR18650GA 18650 lithium-ion cell delivers 3350mAh capacity and 10A continuous discharge, solving critical challenges of short runtime, high-temperature instability, and limited cycle life in power tools, energy storage, and medical devices.
Key Specifications
- Capacity: 3350mAh (0.2C discharge, 5% higher than Samsung 35E)
- Max Continuous Current: 10A (15A pulse, outperforms LG MJ1)
- Voltage Range: 2.5V-4.2V (wide compatibility)
- Cycle Life: ≥500 cycles (80% capacity retention)
- Operating Temp.: -20°C~60°C (stable in harsh conditions)
- Certifications: UN38.3, IEC62133, RoHS
Competitive Analysis (18650 Cells)
| Model | Capacity(mAh) | Continuous Current | Cycle Life |
| Panasonic NCR18650GA | 3350 | 10A | 500 |
| Samsung 35E | 3450 | 8A | 300 |
| EVE INR18650-35E | 3500 | 9A | 400 |
| Sony US18650VTC6 | 3000 | 30A | 500 |
| LG MJ1 | 3500 | 10A | 400 |
Applications: E-bikes, drone batteries, portable energy storage.
