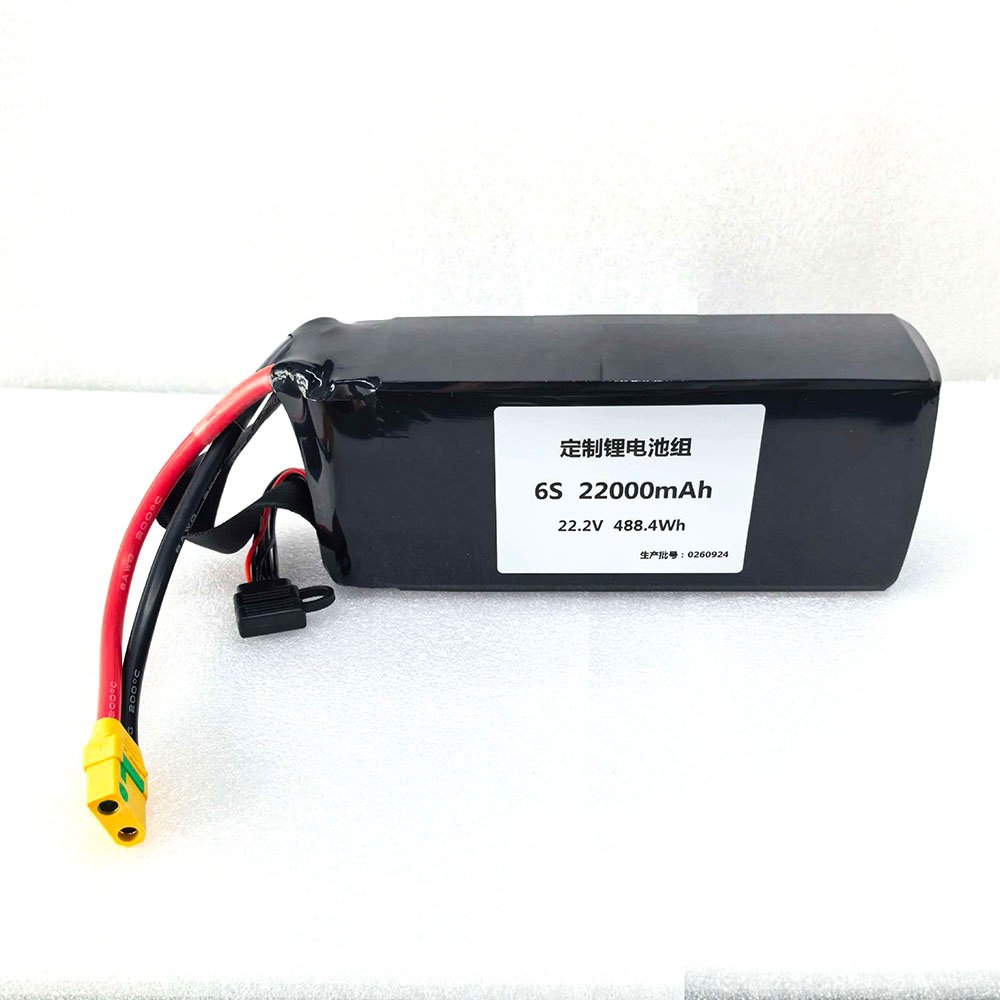

6S 22.2V 22Ah LiPo Battery Pack: Specifications and Sourcing Guide
For overseas buyers sourcing high-capacity 6S lithium polymer battery packs, the 6S 22000mAh 22.2V model is a practical option for UAVs, robotics, and industrial power systems. This article summarizes the key specifications and points to check before requesting a quote.
Basic Product Information
- Model: 6S-22000mAh 22.2V
- Battery type: Lithium-polymer rechargeable battery pack
- Configuration: 6S, 6 cells in series
- Nominal voltage: 22.2V
- Nominal capacity: 22000mAh
- Minimum capacity: 22000mAh
- Max peak discharge rate: 10C
Key Specifications
| Item | Specification |
|---|---|
| Nominal capacity | 22000mAh @0.2C |
| Minimum capacity | 22000mAh |
| Nominal voltage | 22.2V |
| Max charge voltage | 25.2V |
| Standard charge current | 0.5C, approx. 11A |
| Max charge current | 1C, approx. 22A |
| Min discharge voltage | 18V |
| Max continuous discharge current | 5C, approx. 110A, ≤10min per specification |
| Max peak discharge current | 10C, approx. 220A |
| Dimensions | ≤190 × 75 × 68mm |
| Approx. weight | 1980g |
| Shipment voltage | 22.2V–23.4V |
| Warranty | 6 months from delivery |
Discharge Performance
The pack is designed for high-current applications. Its maximum continuous discharge current is listed as 5C, about 110A, with a specification note of ≤10 minutes. The maximum peak discharge current is 10C, about 220A.
For UAV and industrial use, this means the pack can support demanding loads, but thermal management is important. Do not exceed the specified current limits. The minimum discharge voltage is 18V. For aircraft, reserve enough voltage for a safe return.
Charging Requirements
The maximum charge voltage is 25.2V. The standard charge current is 0.5C, about 11A. The maximum charge current is 1C, about 22A.
Do not reverse charge the pack. Connect the positive and negative terminals correctly. The specification table lists a charging temperature of 10°C to +45°C, while the handling section lists 0°C to +45°C. Buyers should confirm the final charging profile with the supplier for their specific system.
Mechanical Details
The pack dimensions are ≤190mm × 75mm × 68mm. The approximate weight is 1980g.
The discharge cable is UL3239 8AWG, with one red and one black wire. Cable length is 160 ± 5mm. The charge cable length is 110 ± 5mm. The listed connector is XH2.54-7PIN / UL3239 22AWG. Buyers should confirm the connector type and intended function before integration.
Operating and Storage Conditions
- Discharge temperature: -20°C to +60°C
- Maximum safe discharge temperature: 60°C
- Storage temperature: -10°C to +35°C per specification table
- Long-term storage: 10°C to 25°C, 65 ± 20% RH
- Storage humidity: <85% RH
- Best storage voltage: 3.6V–3.9V per cell
For long-term storage, charge the pack periodically to avoid over-discharge. Over-discharge can cause swelling and permanent performance loss.
Safety and Handling Notes
- Do not exceed the maximum charge or discharge current.
- Do not overcharge, over-discharge, or short-circuit the pack.
- Do not disassemble, burn, or immerse the battery in liquid.
- Do not drag the external wiring or hit the pack with sharp objects.
- Do not use a damaged pack. If there is electrolyte smell or leakage, keep it away from fire.
- Battery replacement should be done by the cell supplier or device supplier, not by the end user.
Typical Applications
This 6S 22.2V 22Ah pack is suitable for applications that need high capacity and high discharge current, such as:
- UAVs and drones
- Robotics
- Industrial equipment
- Portable power systems
- Other high-power 22.2V platforms
Buyers should match the pack’s voltage, capacity, discharge current, dimensions, and connector to their system requirements.
Before You Request a Quote
To get an accurate quotation, prepare the following details:
- Required voltage and capacity
- Continuous and peak discharge current
- Connector type and cable length
- Maximum dimensions and weight limit
- Charging voltage and current
- Operating temperature range
- Order quantity and sample requirements
- Required documents or test reports
