LinkData 21700 50P Battery Deep Dive: A 5000mAh Cell That Rewrites the Rules – 80A Discharge, 1000 Cycles, 4.0mΩ
The LinkData 21700 50P battery enters the 5000mAh 21700 cell market as a serious contender——and its specs suggest it could change the competitive landscape entirely. Samsung has the 50S and 50E. Molicel has the P50B. LG has the M50LT. Each has its own positioning and customer base.
But there‘s one cell that many buyers may not have noticed yet: LinkData INR21700S-50P.
If you look at its specs, you’ll probably have the same reaction I did——this is not a “regular” 21700 cell.
Key Specifications at a Glance
| Parameter | Value |
|---|---|
| Nominal Capacity | 5,000mAh (minimum) |
| Nominal Voltage | 3.6V |
| Charge Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.5V |
| Standard Charge Current | 5A |
| Max Continuous Charge Current | 15A |
| Max Continuous Discharge (no temp cut) | 50A |
| Max Continuous Discharge (with temp cut) | 80A |
| Max Pulse Discharge (10s) | 200A |
| AC Impedance | ≤4.0mΩ |
| Weight | 67.0±1.5g |
| Cycle Life (5A/5A) | 1,000 cycles ≥80% |
| Cycle Life (8A/30A) | 600 cycles ≥60% |
| Cycle Life (15A/30A) | 200 cycles ≥60% |
| Charge Temperature | -10~60℃ |
| Discharge Temperature | -40~80℃ (surface) |
5,000mAh capacity, 80A continuous discharge, 200A pulse, 1,000 cycles, ≤4.0mΩ internal resistance. What do these numbers mean when put together？
What Does 80A Continuous Discharge Actually Mean？
Let‘s put the LinkData 21700 50P battery in context against other 5000mAh-class 21700 cells.
| Model | Capacity | Continuous Discharge (no temp cut) | Continuous Discharge (with temp cut) |
|---|---|---|---|
| Samsung 50S | 5,000mAh | 25A | 45A |
| Samsung 50E | 4,900mAh | 9.8A | — |
| Molicel P50B | 5,000mAh | 60A | 60A (80℃ recommended cutoff) |
| LinkData 50P | 5,000mAh | 50A | 80A |
The 50P‘s no-temp-cut discharge (50A) sits between the P50B (60A) and the 50S (25A)——literally double the 50S. But its 80A with thermal cutoff is the highest in the 5000mAh 21700 class.

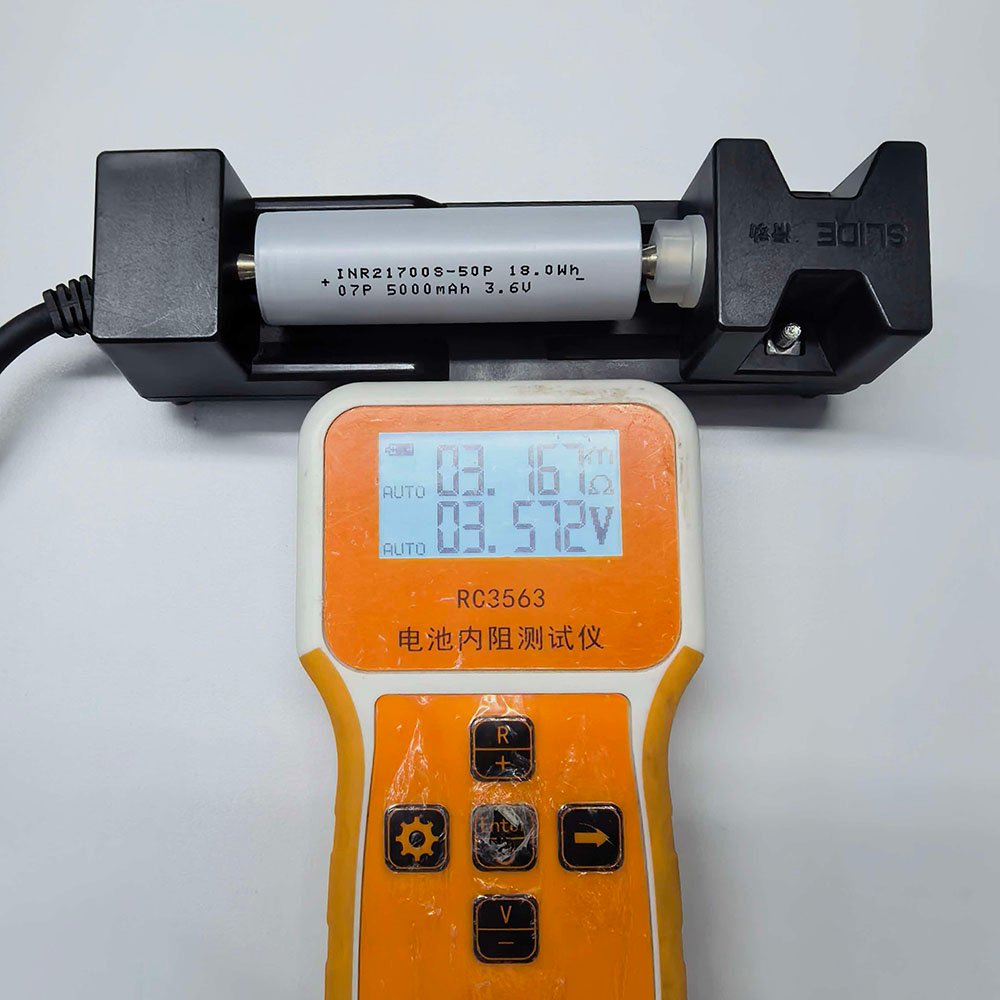

The impedance gap is even more striking: ≤4.0mΩ. P50B is at 8mΩ. 50S is at 14mΩ. 50E is at 35mΩ. 4.0mΩ means minimal heat generation and negligible energy loss at high currents. This cell clearly received special structural optimization to achieve this level of impedance.
200A Pulse: Not All Cells Dare to Print This Number
Many spec sheets avoid pulse discharge data or keep it vague. The 50P states it clearly: 200A, 10 seconds.
This is a concrete, verifiable specification—and it‘s a real extreme-use metric. During drone rapid acceleration, power tool stall conditions, or e-motorcycle launch, current spikes instantaneously. A 200A pulse rating means these devices can operate at their limits without worrying about sudden voltage drop or protection circuit trips.
If your customers have experienced “sudden power loss” or “BMS tripping” due to insufficient pulse capability, this cell deserves serious evaluation.
Cycle Life: 1,000 Cycles at 80%
The 50P‘s cycle life data speaks for itself: under 5A charge/5A discharge conditions, capacity retention ≥80% after 1,000 cycles.
For comparison: The 50S delivers 60% at 250 cycles (25A discharge). The 50E delivers 80% at 500 cycles (but only 9.8A discharge). The P50B delivers 80% at 500 cycles (5A discharge).
1,000 cycles at 80% puts the 50P among the highest-performing 5000mAh-class 21700 cells on the market today.
What Kind of Cell Is This？
Looking at the spec combination, the 50P‘s positioning is clear:
It’s not for energy storage. Although it has 5,000mAh capacity, the 80A discharge capability is overkill for storage applications. Using this cell in storage would be over-spec‘ing and cost-inefficient.
It’s not for standard e-bikes either. Typical e-bike current draw falls in the 15-35A range—the 50S or 40T handle that just fine. The 50P‘s 80A capability would be wasted here, and at a higher price point.
Its target customers are:
- Racing drones – extreme instantaneous burst power, with 200A pulse capability as the core value
- High-power tools (large chainsaws, heavy-duty angle grinders) – sustained high-current output
- E-motorcycles / racing vehicles – massive current delivery on acceleration, without sacrificing cycle life
- High-performance portable power stations (fast-charge/fast-discharge type) – balancing capacity, discharge, and cycle life
How It Fits Alongside Your Existing Lineup
The 50P fills a gap between the 50S and the P50B.
The 50S (25A/45A) is for “good enough for daily use” applications. The P50B (60A) is for “extreme performance, regardless of cost” customers. The 50P (50A/80A) sits right in the middle——for customers who need high power but still care about cost. Its no-temp-cut discharge already approaches the P50B‘s normal rating, and its temp-cut discharge exceeds the P50B‘s spec, all while offering longer cycle life and lower impedance.
Together, these three 5000mAh cells form a clear progression: entry-level high-capacity → high-power → ultra-high-power.
A Note on the Brand
LinkData may not be as familiar to overseas buyers as Samsung or Molicel, but it‘s a company with years of lithium battery R&D and manufacturing experience in China. The 50P‘s specs show significant optimization in electrochemistry and structural design——achieving 4.0mΩ impedance, 1,000 cycles at 80%, and 80A discharge isn’t something just any factory can pull off.
For overseas buyers, brand name matters less than actual performance data and supply chain reliability. The 50P‘s specs are compelling enough to warrant serious attention.
So, Is the 50P the Right Fit for Your Project？
The LinkData INR21700S-50P is a spec-sheet standout. 5,000mAh capacity, 80A continuous discharge, 200A pulse, ≤4.0mΩ impedance, 1,000 cycles——if these numbers hold up to real-world verification, this cell will carve out a unique position in the 21700 high-power market.
It‘s not a fit for energy storage or standard e-bikes. But for applications demanding extreme power output—racing drones, high-power tools, e-motorcycles—it’s a serious contender worth evaluating.

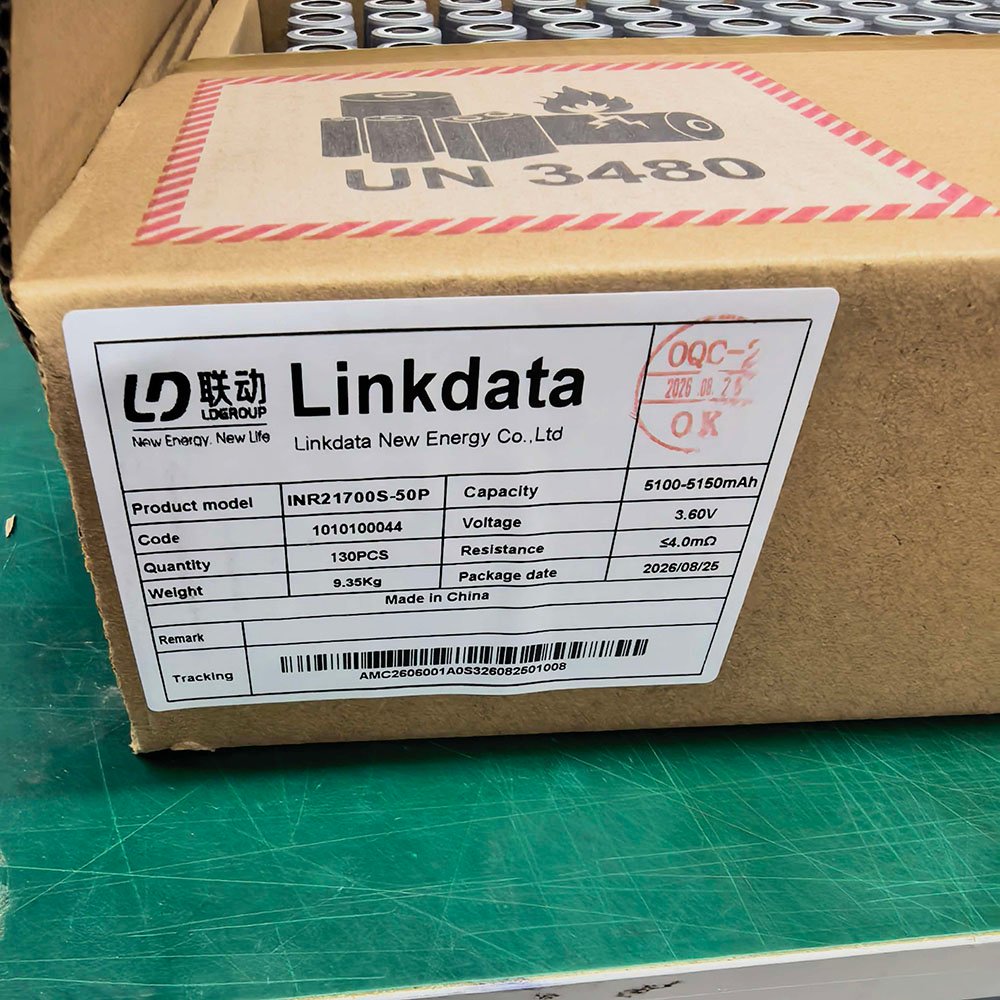

BECELL will have LinkData 50P in stock soon. Contact us for detailed specifications, test data, or samples.
